Qorvo provides a recommended PCB layout and thermal management guide in their application note AN-2171, which includes guidelines for thermal vias, heat sinks, and PCB stack-up to ensure optimal performance and thermal dissipation.
Qorvo offers a free online tool, Qorvo's GaN Device Model and S-Parameter Tool, which allows users to simulate and optimize the biasing and matching network for their specific application. Additionally, Qorvo's application engineers can provide custom support and guidance.
While the datasheet specifies a maximum junction temperature (Tj) of 150°C, the maximum operating temperature range for the QPC3223TR7 is typically limited by the package and PCB design. Qorvo recommends a maximum operating temperature of 125°C for most applications.
Qorvo recommends using a soft-start circuit to slowly ramp up the voltage and current during startup to prevent damage to the device. A typical soft-start circuit consists of a voltage-controlled current source and a resistive divider network.
The QPC3223TR7 is a sensitive device and requires proper ESD protection during handling and assembly. Qorvo recommends following standard ESD handling procedures, such as using ESD-safe workstations, wrist straps, and packaging materials.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
QPC3223TR7 Overview

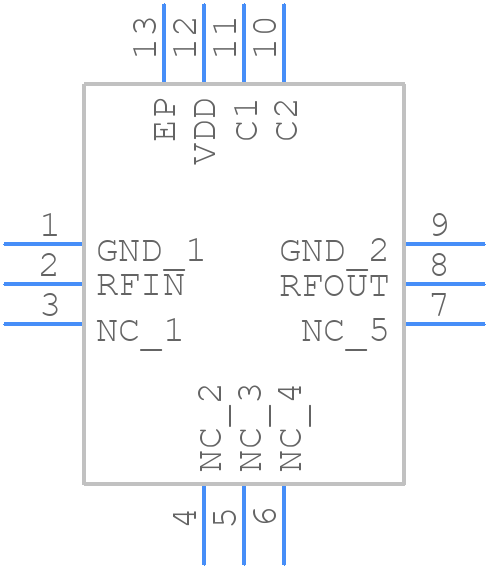

Use the download button to access the QPC3223TR7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like QPC32,
or try a keyword search, such as RF/Microwave Attenuators
