Qorvo provides a recommended PCB layout guide for the QPC3614TR13, which includes guidelines for component placement, trace routing, and grounding. It's essential to follow this guide to ensure optimal performance, low noise, and minimal signal degradation.
The QPC3614TR13 has a thermal pad on the bottom of the package, which requires proper thermal management to prevent overheating. A thermal via or a heat sink can be used to dissipate heat. The recommended thermal resistance (θJA) is 25°C/W, and the maximum junction temperature is 150°C.
Although the datasheet specifies an operating frequency range of 24.25 GHz to 27.5 GHz, the QPC3614TR13 can operate up to 30 GHz with some degradation in performance. However, it's essential to consult with Qorvo's application engineers to determine the feasibility of operating at higher frequencies.
While the QPC3614TR13 is designed for RF applications, its high-speed and low-power characteristics make it suitable for non-RF applications, such as high-speed data converters, clock generation, and signal processing. However, it's crucial to evaluate the device's performance in the specific application and consult with Qorvo's application engineers if necessary.
Qorvo provides a troubleshooting guide for the QPC3614TR13, which covers common issues and their solutions. Additionally, Qorvo's application engineers can provide support and guidance to help resolve complex issues. It's essential to follow proper design and layout guidelines to minimize the risk of oscillations and instability.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
QPC3614TR13 Overview

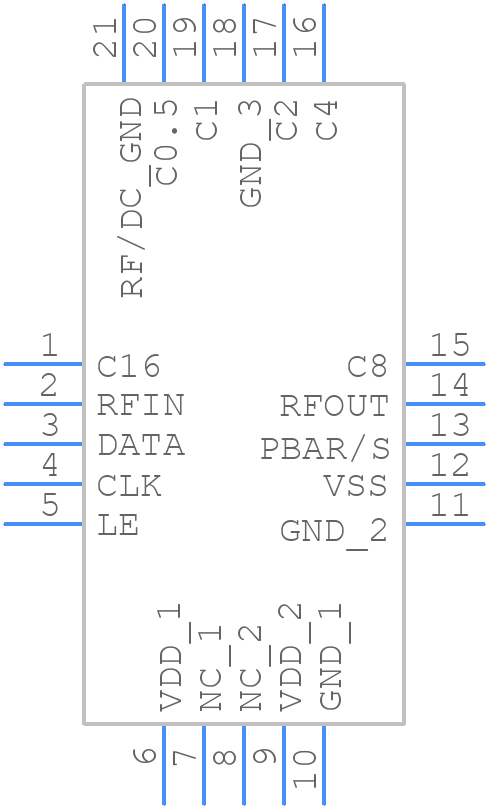

Use the download button to access the QPC3614TR13 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like QPC36,
or try a keyword search, such as RF/Microwave Attenuators
About Qorvo
Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
