QPC4043SR - Qorvo

Description: 5 − 3000 MHz, 75 Ohm, Closed Loop Voltage Controlled Attenuator

Download QPC4043SR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

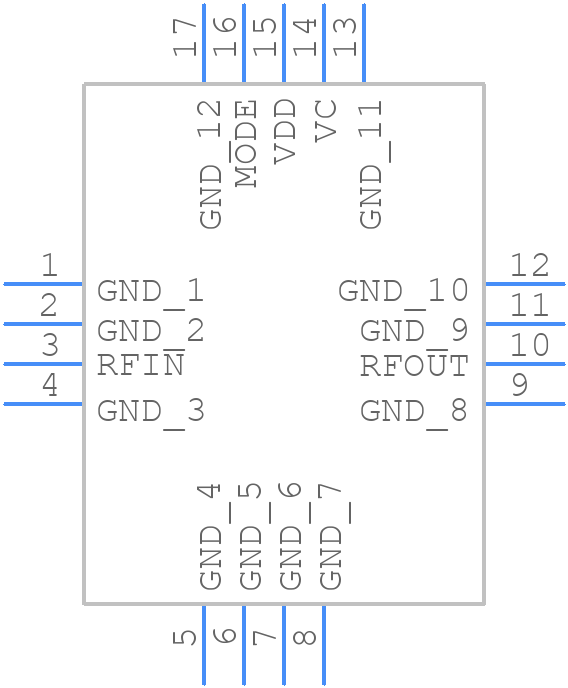

QPC4043SR - Qorvo - PCB symbol
click to zoom
PCB Footprints
QPC4043SR - Qorvo PCB footprint - Other - Other - 16 Pin 3 x 3mm_2024-8
click to zoom
3D Models
QPC4043SR - Qorvo - 3D model - Other - 16 Pin 3 x 3mm_2024-8
click to zoom

QPC4043SR Details

  • Manufacturer Part Number:

    QPC4043SR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    5A991.G

  • HTS Code:

    8542.39.00.90

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Qorvo

  • YTEOL:

    7

  • JESD-609 Code:

    e4

  • RF/Microwave Device Type:

    VARIABLE ATTENUATOR

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

QPC4043SR Frequently Asked Questions (FAQs)

  • Qorvo provides a recommended PCB layout in their application note AN-2171, which includes guidelines for component placement, trace routing, and grounding to minimize noise and ensure optimal performance.
  • The QPC4043SR has a thermal pad on the bottom of the package, which should be connected to a thermal ground plane on the PCB to dissipate heat. Additionally, the device should be mounted on a heat sink or a metal core PCB to further improve thermal management.
  • The QPC4043SR is rated for operation from -40°C to +105°C, but it's recommended to derate the power handling at higher temperatures to ensure reliability and prevent thermal runaway.
  • The QPC4043SR has a nominal impedance of 50 ohms, but the actual impedance may vary depending on the frequency and operating conditions. Qorvo provides impedance matching guidelines in their application note AN-2171, which includes recommended component values and layout considerations.
  • The QPC4043SR is rated for a maximum input power of 43 dBm (20 W), but it's recommended to derate the power handling to ensure reliability and prevent damage to the device.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

QPC4043SR Overview

Use the download button to access the QPC4043SR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like QPC40, or try a keyword search, such as RF/Microwave Attenuators

About Qorvo

Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
