Qorvo recommends a 4-layer PCB with a solid ground plane, and thermal vias under the package to dissipate heat. A thermal pad on the bottom of the package should be connected to a large copper area on the PCB to improve heat dissipation.
Qorvo provides a reference design and simulation models for the QPC6044TR13. Engineers can use these resources to optimize the input and output matching networks for their specific application using simulation software such as ADS or AWR Microwave Office.
Qorvo recommends a sequential tuning procedure, starting with the drain voltage, then the gate voltage, and finally the input and output matching networks. The device should be biased in a pulsed mode to prevent overheating during the tuning process.
Qorvo recommends following the recommended assembly and handling procedures to prevent damage to the device. Engineers should also ensure that the device is operated within its recommended operating conditions, and that the PCB design and thermal management are adequate to prevent overheating.
The QPC6044TR13 has internal ESD protection, but engineers should still follow standard ESD handling precautions, such as using an ESD wrist strap or mat, and storing the devices in anti-static packaging. The device should be handled by the package, not the pins, to prevent damage.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
QPC6044TR13 Overview

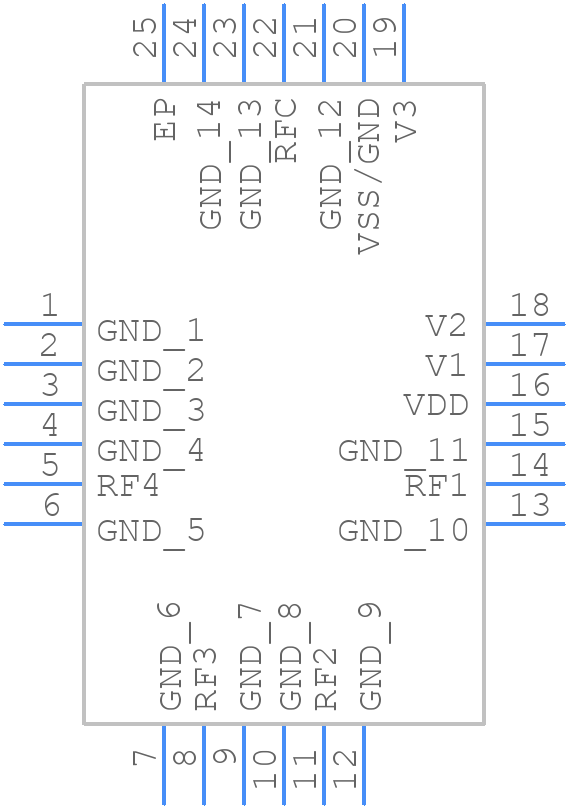

Use the download button to access the QPC6044TR13 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like QPC60,
or try a keyword search, such as RF/Microwave Switches
