- Part Number QPC6742SR
- Manufacturer Qorvo
- Pin Count 13
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - QPC6742SR
- Released Date Jul 19, 2019
- Last Modified Date Feb 19, 2025 12:06 PM UTC
- Pinout / Pin List Click Here (Member Only)
QPC6742SR Details
-
Manufacturer Part Number:
QPC6742SR
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
QFN-12
-
ECCN Code:
EAR99
-
HTS Code:
8536.50.70.00
-
Factory Lead Time:
20 Weeks
-
Manufacturer:
Qorvo
-
YTEOL:
6
-
1dB Compression Point:
40 dBm
-
Characteristic Impedance:
75 Ω
QPC6742SR Frequently Asked Questions (FAQs)
-
Qorvo provides a reference design and layout guidelines in their application notes and design guides. It's essential to follow these guidelines to ensure optimal thermal management and minimize parasitic effects. Additionally, a thermal via array under the device can help to dissipate heat efficiently.
-
Qorvo provides a set of recommended biasing and tuning procedures in their application notes. However, the optimal biasing and tuning may vary depending on the specific application and operating conditions. It's recommended to consult with Qorvo's application engineers or perform experiments to determine the optimal settings for your specific use case.
-
Qorvo performs a range of reliability and qualification tests on the QPC6742SR, including temperature cycling, humidity testing, and electrical overstress testing. The device is also qualified to various industry standards, such as AEC-Q100 for automotive applications. The specific tests and qualifications can be found in the Qorvo reliability report and datasheet.
-
Qorvo provides a set of recommended matching networks and antenna designs in their application notes. Additionally, it's recommended to perform electromagnetic simulations and measurements to optimize the matching and ensure optimal performance. Qorvo's application engineers can also provide guidance on matching and antenna design.
-
The QPC6742SR has built-in ESD protection diodes and latch-up protection mechanisms to prevent damage from electrostatic discharge and latch-up events. However, it's still important to follow proper handling and assembly procedures to prevent damage. Qorvo provides guidelines on ESD handling and protection in their application notes.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
QPC6742SR Overview

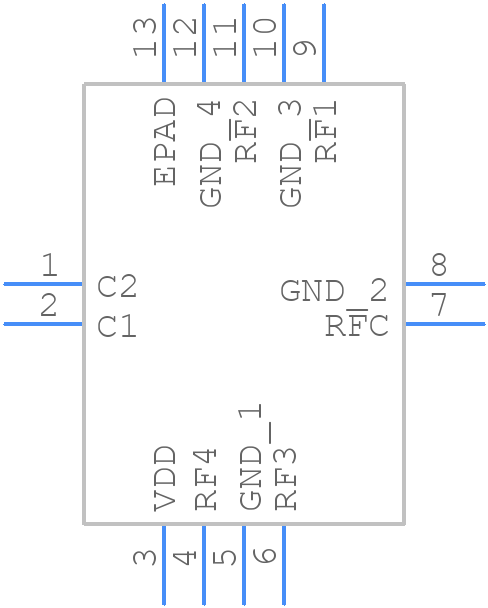

Use the download button to access the QPC6742SR schematic symbol, PCB footprint, and 3D model.
