- Part Number QPC6762SR
- Manufacturer Qorvo
- Pin Count 15
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - QPC6762SR
- Released Date Mar 25, 2019
- Last Modified Date Jun 22, 2023 2:40 AM UTC
- Pinout / Pin List Click Here (Member Only)
QPC6762SR Details
-
Manufacturer Part Number:
QPC6762SR
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Package Description:
QFN-14
-
ECCN Code:
EAR99
-
HTS Code:
8536.50.70.00
-
Manufacturer:
Qorvo
-
YTEOL:
0
-
Additional Feature:
HIGH ISOLATION
-
Characteristic Impedance:
75 Ω
-
Construction:
COMPONENT
QPC6762SR Frequently Asked Questions (FAQs)
-
Qorvo provides a recommended PCB layout guide for the QPC6762SR, which includes guidelines for component placement, trace routing, and grounding. It's essential to follow this guide to ensure optimal performance, low noise, and minimal electromagnetic interference (EMI).
-
The biasing network for the QPC6762SR depends on the specific application and operating frequency. Qorvo provides a biasing network design guide that includes examples and calculations for different scenarios. Engineers should consult this guide and consider factors like input power, gain, and noise figure when selecting the biasing network.
-
While the datasheet specifies an operating temperature range of -40°C to 85°C, Qorvo recommends derating the device's power dissipation above 70°C to ensure reliable operation. Engineers should consider the thermal management of their design and ensure that the device does not exceed the maximum junction temperature (Tj) of 150°C.
-
Qorvo provides a troubleshooting guide for the QPC6762SR, which covers common issues like oscillation, instability, and noise. Engineers should consult this guide and check for proper PCB layout, component selection, and biasing network design. They should also verify that the device is operated within its recommended specifications and consider using simulation tools to analyze the circuit.
-
Yes, the QPC6762SR is a sensitive device and requires proper ESD protection during handling, assembly, and testing. Qorvo recommends following standard ESD protection procedures, such as using ESD-safe workstations, wrist straps, and packaging materials. Engineers should also consider adding ESD protection devices, like diodes or resistors, to the circuit design.
Trust Checks
Community Provided
System Verified
Community Approved
QPC6762SR Overview

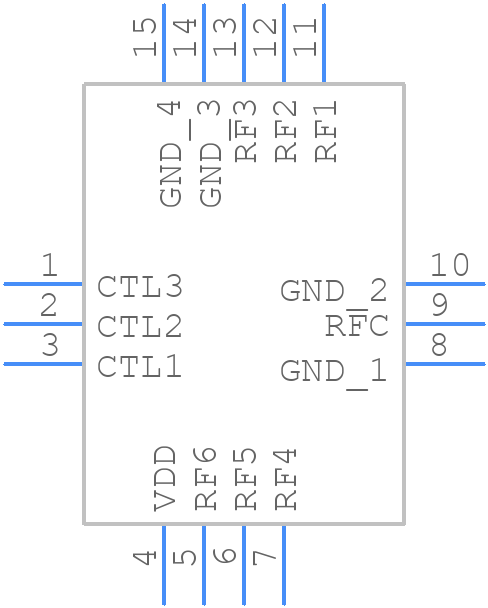

Use the download button to access the QPC6762SR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like QPC67,
or try a keyword search, such as RF/Microwave Switches
About Qorvo
Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
