Part Image

QPC7335SB - Qorvo

Description: 45 - 1000 MHz Variable Equalizer 5V single supply voltage 75Ohm impedance for CATV applications

Download QPC7335SB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

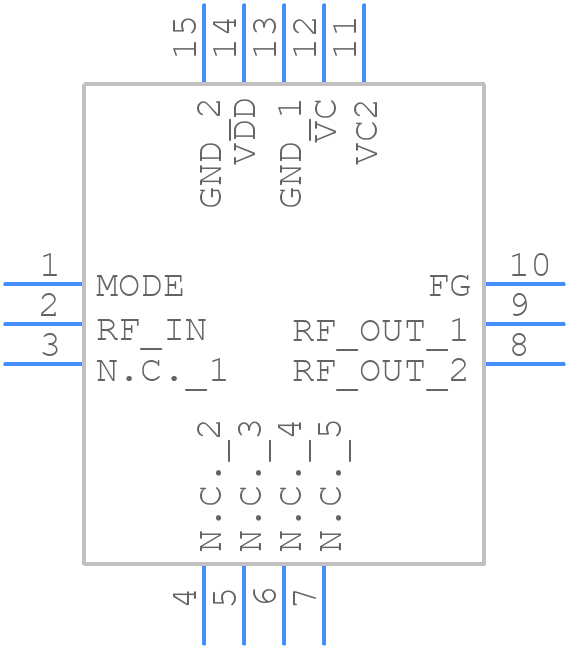

Symbol
QPC7335SB - Qorvo - PCB symbol
click to zoom
PCB Footprints
QPC7335SB - Qorvo PCB footprint - Other - Other - 14 pin, 6.0 mm x 6.0 mm x 1.375_2025-12
click to zoom
3D Models
QPC7335SB - Qorvo - 3D model - Other - 14 pin, 6.0 mm x 6.0 mm x 1.375_2025-12
click to zoom

QPC7335SB Details

  • Manufacturer Part Number:

    QPC7335SB

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Qorvo

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

QPC7335SB Overview

Use the download button to access the QPC7335SB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like QPC73, or try a keyword search, such as Other Consumer ICs

About Qorvo

Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
