- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for QPC7337TR7
- Part Number QPC7337TR7
- Manufacturer Qorvo
- Pin Count 15
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - 14 pin, 6.0 mm x 6.0 mm x 1.375 _2025-6
- Released Date Jan 3, 2025
- Last Modified Date Feb 19, 2025 12:06 PM UTC
- Pinout / Pin List Click Here (Member Only)
QPC7337TR7 Details
-
Manufacturer Part Number:
QPC7337TR7
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
5A991.B.5.B
-
HTS Code:
8542.39.00.90
-
Factory Lead Time:
20 Weeks
-
Manufacturer:
Qorvo
-
Consumer IC Type:
CONSUMER CIRCUIT
QPC7337TR7 Frequently Asked Questions (FAQs)
-
Qorvo provides a recommended PCB layout and thermal management guide in their application note AN-2171, which includes guidelines for thermal vias, heat sinks, and PCB stack-up to ensure optimal performance and thermal dissipation.
-
Qorvo offers a free online tool, Qorvo's GaN Device Model and S-Parameter Tool, which allows users to simulate and optimize biasing and matching networks for their specific application. Additionally, Qorvo's application engineers can provide custom support and guidance.
-
Qorvo performs a range of reliability and qualification tests, including JEDEC and AEC-Q102 standards, to ensure the QPC7337TR7 meets the required specifications. These tests include high-temperature operating life, temperature cycling, and electrostatic discharge testing, among others.
-
While the QPC7337TR7 is primarily designed for RF applications, its high-power and high-frequency capabilities make it suitable for other high-power applications, such as power supplies or motor control. However, Qorvo recommends consulting with their application engineers to ensure the device meets the specific requirements of the non-RF application.
-
Lead times and minimum order quantities for the QPC7337TR7 vary depending on the region, distributor, and availability. It's recommended to check with authorized distributors, such as Digi-Key or Mouser, or contact Qorvo's sales team directly for the most up-to-date information.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
QPC7337TR7 Overview

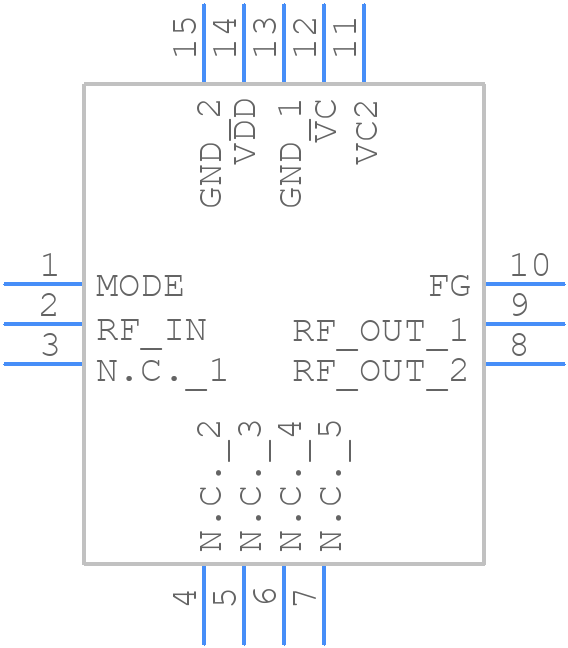

Use the download button to access the QPC7337TR7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like QPC73,
or try a keyword search, such as Other Consumer ICs
About Qorvo
Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
