- Part Number QPC8020QTR13
- Manufacturer Qorvo
- Pin Count 9
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - QPC8020QTR13-3
- Released Date Mar 10, 2023
- Last Modified Date Feb 19, 2025 12:06 PM UTC
- Pinout / Pin List Click Here (Member Only)
QPC8020QTR13 Details
-
Manufacturer Part Number:
QPC8020QTR13
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8536.50.70.00
-
Factory Lead Time:
8 Weeks
-
Manufacturer:
Qorvo
-
RF/Microwave Device Type:
SP4T
QPC8020QTR13 Frequently Asked Questions (FAQs)
-
Qorvo provides a reference design and layout guidelines in their application notes and design guides. It's recommended to follow these guidelines to ensure optimal thermal performance and minimize parasitic effects. Additionally, a thermal via array under the device can help to dissipate heat efficiently.
-
Qorvo recommends using their proprietary tools, such as the Qorvo GaN Design Hub, to simulate and optimize the matching network. The tool provides a library of components and a graphical interface to design and optimize the matching network for maximum power transfer.
-
The recommended biasing scheme for the QPC8020QTR13 is a voltage-controlled current source. Qorvo provides a recommended biasing circuit in their application notes, which includes a voltage regulator and a current sense resistor to ensure stable operation.
-
Qorvo recommends following standard ESD protection procedures, such as using an ESD wrist strap or mat, and handling the device in an ESD-controlled environment. Additionally, the device should be stored in an anti-static bag or container when not in use.
-
The maximum operating temperature for the QPC8020QTR13 is 150°C. However, Qorvo recommends operating the device at a temperature below 125°C to ensure optimal performance and reliability.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
QPC8020QTR13 Overview

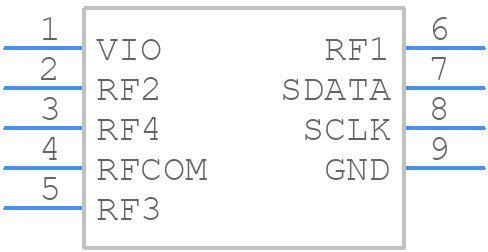

Use the download button to access the QPC8020QTR13 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like QPC80,
or try a keyword search, such as RF/Microwave Switches
