- Part Number QPI-5LZ
- Manufacturer VICOR
- Pin Count 16
- Part Category Filter
- Package Category Other

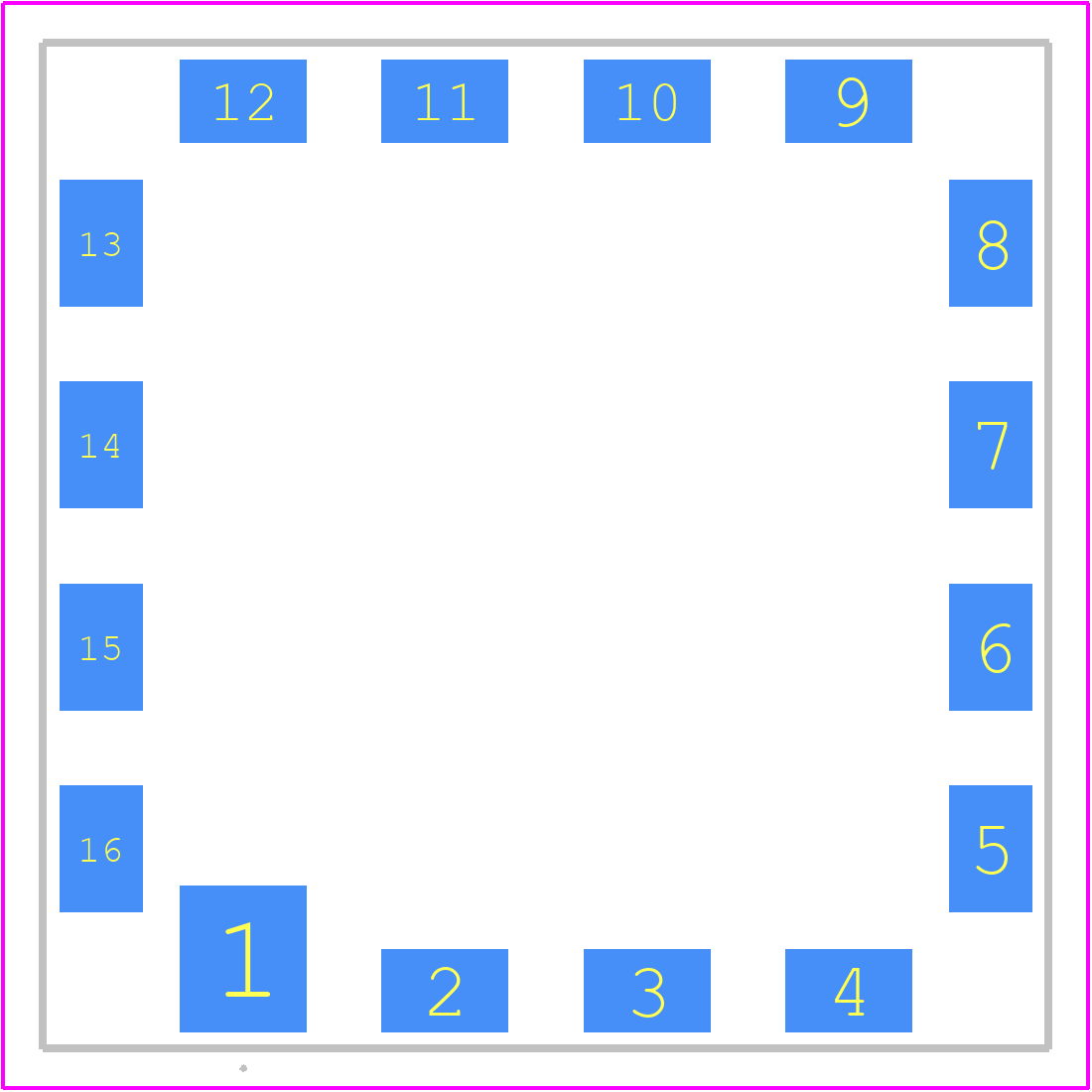

- Footprint Name Other - QPI-5LZ-3
- Released Date Jan 4, 2025
- Last Modified Date Jan 4, 2025 10:51 AM UTC
- Pinout / Pin List Click Here (Member Only)
QPI-5LZ Details
-
Manufacturer Part Number:
QPI-5LZ
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
LGA
-
Pin Count:
16
-
Country Of Origin:
Philippines
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
-
Factory Lead Time:
20 Weeks
-
Manufacturer:
Vicor Power
QPI-5LZ Frequently Asked Questions (FAQs)
-
The maximum operating temperature range for the QPI-5LZ is -40°C to +125°C, with a derated power output above 100°C.
-
Proper thermal management can be achieved by providing adequate airflow, using a heat sink, and ensuring good thermal interface material (TIM) between the QPI-5LZ and the heat sink.
-
The recommended input capacitance for the QPI-5LZ is 10uF to 22uF, with a voltage rating of at least 2x the input voltage.
-
Yes, the QPI-5LZ is designed to meet the requirements of high-reliability and military applications, with options for screening and testing available.
-
Troubleshooting issues with the QPI-5LZ can be done by checking the input voltage, output voltage, and current, as well as verifying proper thermal management and input capacitance.
Trust Checks
Community Provided
System Verified
Community Approved
QPI-5LZ Overview

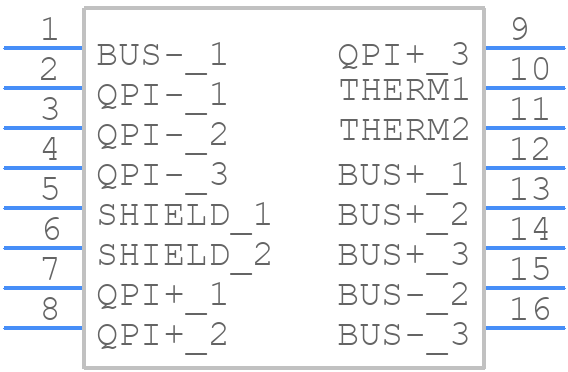

Use the download button to access the QPI-5LZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like QPI-5,
or try a keyword search, such as Data Line Filters
