QPL1240TR13 - Qorvo

Description:  High Gain: 17.9 dB at 1218 MHz  5 – 1218 MHz BW  OIP3: +42.5 dBm, Downstream 50 – 1218 MHz  OP1dB: 26.6 dBm, Downstream 50 – 1218 MHz  Low Noise Figure: < 2.6 dB, Downstream  Excellent Composite Distortion  pHEMT GaAs device technologies  Compact Size: 8-pin SOIC  5 to 8V supply voltage operation

Download QPL1240TR13 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

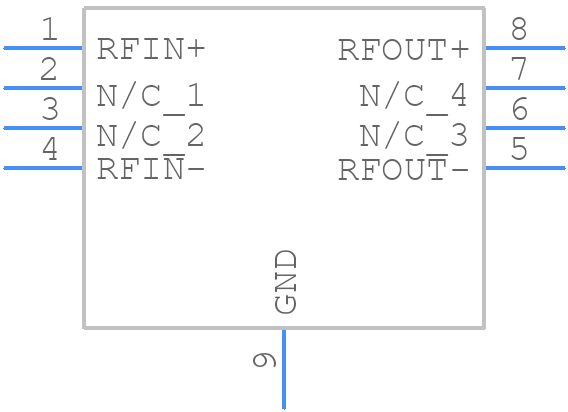

QPL1240TR13 - Qorvo - PCB symbol
click to zoom
PCB Footprints
QPL1240TR13 - Qorvo PCB footprint - Small Outline Packages - Small Outline Packages - QPL1811SR
click to zoom
3D Models
QPL1240TR13 - Qorvo - 3D model - Small Outline Packages - QPL1811SR
click to zoom

QPL1240TR13 Details

  • Manufacturer Part Number:

    QPL1240TR13

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    5A991.B

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Qorvo

  • RF/Microwave Device Type:

    WIDE BAND MEDIUM POWER

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

QPL1240TR13 Overview

Use the download button to access the QPL1240TR13 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like QPL12, or try a keyword search, such as RF/Microwave Amplifiers

About Qorvo

Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
