Part Image

QPL3050SR - Qorvo

Description: 6 - 14 GHz (C, X and Ku-band) Driver Amplifier

Download QPL3050SR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

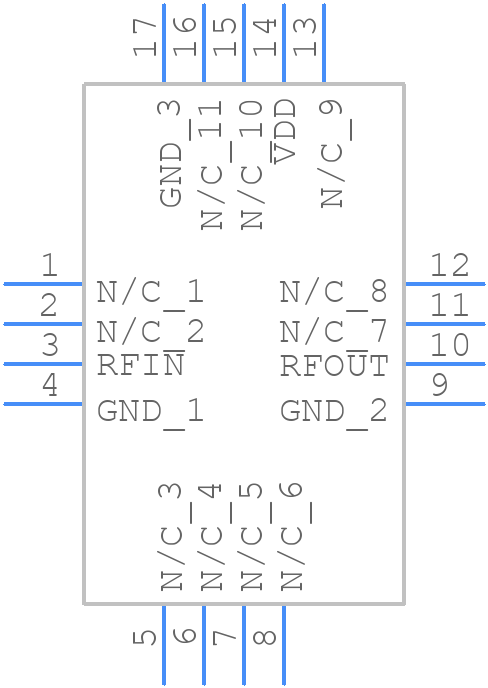

QPL3050SR - Qorvo - PCB symbol
click to zoom
PCB Footprints
QPL3050SR - Qorvo PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 16-Lead QFN
click to zoom
3D Models
QPL3050SR - Qorvo - 3D model - Quad Flat No-Lead - 16-Lead QFN
click to zoom

QPL3050SR Details

  • Manufacturer Part Number:

    QPL3050SR

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Qorvo

  • RF/Microwave Device Type:

    WIDE BAND HIGH POWER

QPL3050SR Frequently Asked Questions (FAQs)

  • Qorvo provides a recommended PCB layout guide for the QPL3050SR, which includes guidelines for component placement, trace routing, and grounding. It's essential to follow this guide to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The QPL3050SR has a thermal pad on the bottom of the package, which requires a thermal connection to the PCB or a heat sink. Ensure good thermal conductivity by using a thermal interface material (TIM) and a heat sink with a thermal resistance of less than 10°C/W.
  • While the datasheet specifies an operating temperature range of -40°C to 85°C, it's essential to note that the device's performance may degrade at higher temperatures. For optimal performance, it's recommended to operate the QPL3050SR within a temperature range of -20°C to 70°C.
  • The QPL3050SR requires a specific biasing scheme to operate optimally. Ensure that the VCC pin is connected to a stable 3.3V power supply, and the VEE pin is connected to a stable -3.3V power supply. Additionally, the biasing resistors should be chosen to provide a stable current of around 10mA.
  • The QPL3050SR is designed to operate with a 50Ω input and output impedance. Ensure that the input and output traces are impedance-matched to 50Ω to minimize signal reflections and ensure optimal performance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

QPL3050SR Overview

Use the download button to access the QPL3050SR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like QPL30, or try a keyword search, such as RF/Microwave Amplifiers

About Qorvo

Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
