Description: Tested in accordance with AEC-Q100 Grade 2
High Gain device – Typical value 15.1dB
Ultra-low noise figure, 0.45 dB NF at 2332 MHz
High linearity, +36 dBm Output IP3
Unconditionally stable
Externally controlled Icq with Vbias
Integrated shutdown control pin
3.3-5.25 V positive supply voltage: −Vgg not required
Qorvo provides a recommended PCB layout guide in their application note AN-2171, which includes guidelines for component placement, trace routing, and grounding to ensure optimal performance and minimize electromagnetic interference (EMI).
The QPL6216QTR7 requires a specific biasing scheme to operate optimally. Qorvo recommends using a voltage regulator to provide a stable 3.3V supply, and ensuring that the VCC pin is decoupled with a 10nF capacitor to ground. Additionally, the EN pin should be tied to a logic high (3.3V) to enable the device.
The QPL6216QTR7 is rated for operation from -40°C to +105°C, but Qorvo recommends derating the device's performance at temperatures above 85°C to ensure reliability and prevent thermal shutdown.
Qorvo provides a troubleshooting guide in their application note AN-2172, which includes steps for identifying and resolving common issues such as output stage failures, input stage failures, and thermal shutdown. Additionally, Qorvo recommends using a logic analyzer or oscilloscope to debug the device's digital interfaces.
Yes, the QPL6216QTR7 is compatible with lead-free soldering processes, and Qorvo recommends following the IPC J-STD-020D standard for lead-free soldering. However, it's essential to ensure that the soldering process does not exceed the maximum recommended temperature of 260°C to prevent damage to the device.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
QPL6216QTR7 Overview

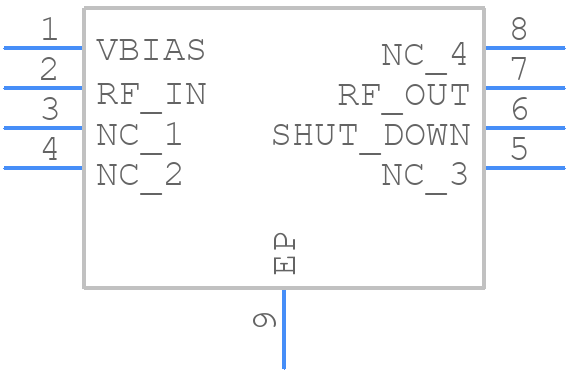

Use the download button to access the QPL6216QTR7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like QPL62,
or try a keyword search, such as RF/Microwave Amplifiers
About Qorvo
Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
