- Part Number QPL7420TR7
- Manufacturer Qorvo
- Pin Count 17
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - QPL7420TR7
- Released Date Jan 19, 2024
- Last Modified Date Feb 19, 2025 12:06 PM UTC
- Pinout / Pin List Click Here (Member Only)
QPL7420TR7 Details
-
Manufacturer Part Number:
QPL7420TR7
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Reach Compliance Code:
Unknown
-
ECCN Code:
5A991.B
-
Factory Lead Time:
20 Weeks
-
Manufacturer:
Qorvo
-
JESD-609 Code:
e4
-
RF/Microwave Device Type:
WIDE BAND LOW POWER
-
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
QPL7420TR7 Frequently Asked Questions (FAQs)
-
Qorvo provides a reference design and layout guidelines in their application notes and design guides. It's recommended to follow these guidelines to ensure optimal thermal performance and minimize parasitic effects.
-
Qorvo provides a set of recommended biasing and tuning procedures in their application notes. Additionally, Qorvo's simulation models and design tools can be used to optimize the performance of the device for specific applications.
-
Qorvo performs a range of reliability and qualification tests on the QPL7420TR7, including temperature cycling, humidity testing, and electrical overstress testing. The details of these tests can be found in Qorvo's reliability report and qualification documents.
-
Qorvo provides a set of recommended matching and tuning procedures in their application notes. Additionally, Qorvo's simulation models and design tools can be used to optimize the matching and tuning of the device for specific RF circuits.
-
The QPL7420TR7 has built-in ESD protection, and Qorvo recommends following proper handling and assembly procedures to prevent ESD damage. Additionally, Qorvo provides guidelines for latch-up protection in their application notes.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
QPL7420TR7 Overview

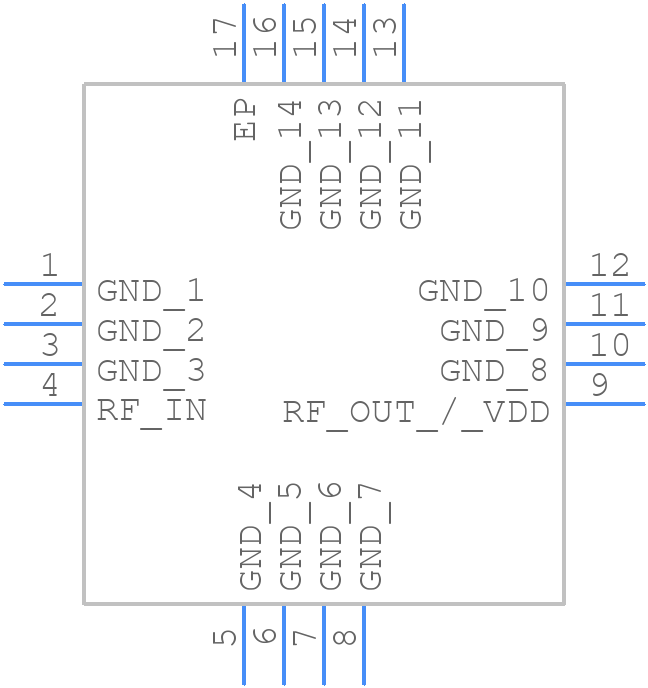

Use the download button to access the QPL7420TR7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like QPL74,
or try a keyword search, such as RF/Microwave Amplifiers
