Qorvo provides a recommended PCB layout guide for the QPL7425SR, which includes guidelines for component placement, trace routing, and grounding. It's essential to follow this guide to ensure optimal performance, low noise, and minimal electromagnetic interference (EMI).
The QPL7425SR has a thermal pad on the bottom of the package, which requires proper thermal management to prevent overheating. A thermal via or a thermal pad on the PCB is recommended to dissipate heat efficiently. Additionally, ensure good airflow around the device and avoid blocking the airflow with nearby components.
The QPL7425SR has an operating temperature range of -40°C to +125°C, but it's essential to note that the device's performance may degrade at higher temperatures. It's recommended to operate the device within a temperature range of -20°C to +85°C for optimal performance and reliability.
The QPL7425SR requires a specific biasing scheme to operate optimally. Ensure that the device is biased according to the recommended operating conditions specified in the datasheet, including the correct voltage supply, current limits, and impedance matching.
The QPL7425SR is a sensitive device and requires proper ESD protection and handling precautions to prevent damage. Handle the device with an ESD wrist strap or mat, and ensure that the PCB and components are properly grounded. Avoid touching the device's pins or exposed pads, and use ESD-safe packaging and storage materials.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
QPL7425SR Overview

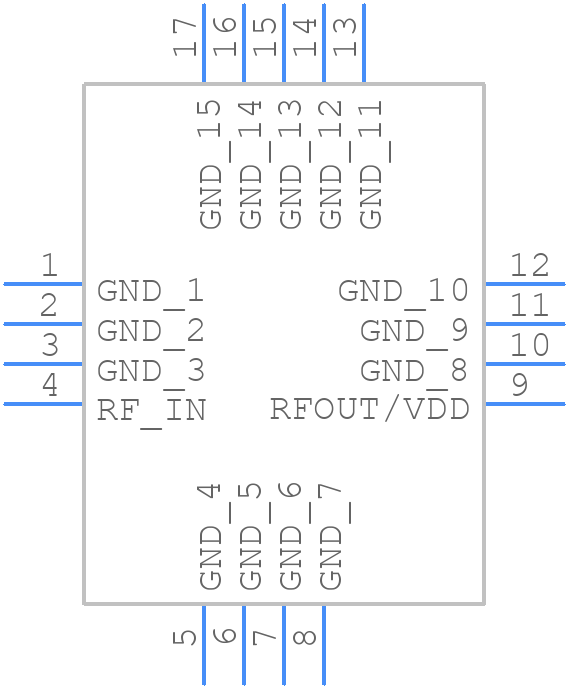

Use the download button to access the QPL7425SR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like QPL74,
or try a keyword search, such as RF/Microwave Amplifiers
About Qorvo
Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
