Qorvo provides a recommended PCB layout guide for the QPL7442TR7, which includes guidelines for component placement, trace routing, and grounding. It's essential to follow this guide to ensure optimal performance, low noise, and minimal electromagnetic interference (EMI).
The QPL7442TR7 has a maximum junction temperature of 150°C. To ensure reliable operation, it's crucial to implement proper thermal management, such as using a heat sink, thermal interface material, and ensuring good airflow around the device. Qorvo provides thermal resistance and power dissipation guidelines in the datasheet to help with thermal design.
Qorvo provides a recommended input and output matching network for the QPL7442TR7 in the datasheet. However, the optimal matching network may vary depending on the specific application and operating frequency. Engineers can use simulation tools and impedance matching software to optimize the matching network for their specific use case.
Qorvo provides a troubleshooting guide for the QPL7442TR7, which includes common issues, symptoms, and solutions. Engineers can also consult the datasheet, application notes, and Qorvo's technical support resources for guidance on troubleshooting and debugging.
The QPL7442TR7 has undergone rigorous reliability and qualification tests, including temperature cycling, humidity testing, and electrical overstress testing. Qorvo provides detailed information on the testing and qualification process in the datasheet and reliability report.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
QPL7442TR7 Overview

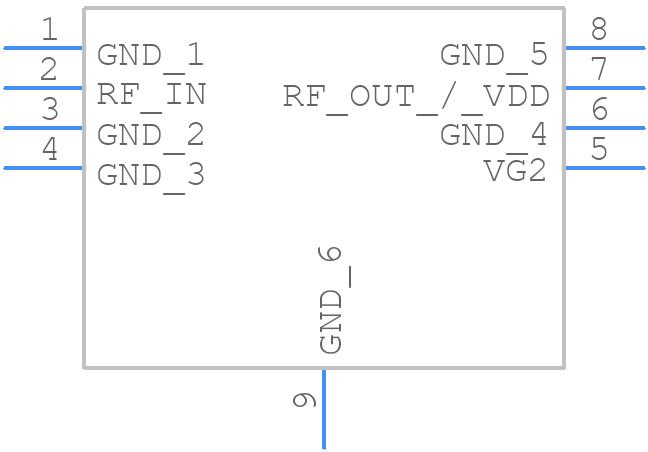

Use the download button to access the QPL7442TR7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like QPL74,
or try a keyword search, such as RF/Microwave Amplifiers
