QPL9057TR7 - Qorvo

Description: 0.6 - 4.2 GHz Low Noise Amplifier

Download QPL9057TR7 Model

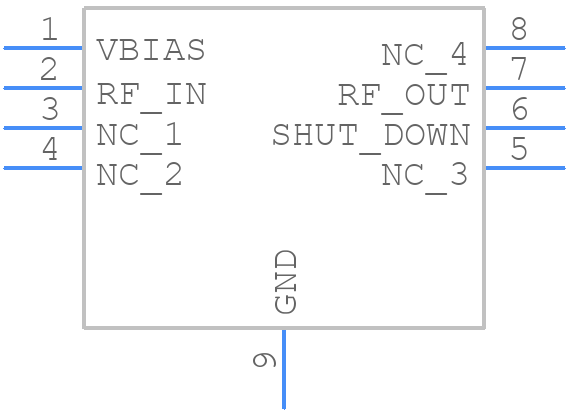

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
QPL9057TR7 - Qorvo PCB footprint - Small Outline No-lead - Small Outline No-lead - QPL9057TR7-1
click to zoom

QPL9057TR7 Details

  • Manufacturer Part Number:

    QPL9057TR7

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-8

  • ECCN Code:

    5A991.B

  • HTS Code:

    8517.62.00.90

  • Factory Lead Time:

    16 Weeks

  • Date Of Intro:

    2019-01-16

  • Manufacturer:

    Qorvo

  • YTEOL:

    7.46

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    21.5 dB

  • Input Power-Max (CW):

    27 dBm

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Frequency-Max:

    4200 MHz

  • Operating Frequency-Min:

    600 MHz

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    LOW NOISE AMPLIFIER

  • Supply Current-Max:

    70 mA

  • Surface Mount:

    YES

  • Technology:

    E-PHEMT

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • VSWR-Max:

    1.67

QPL9057TR7 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the RF traces as short as possible and use 50-ohm microstrip lines. Avoid vias and thermal pads under the device.
  • Use a thermal interface material (TIM) with a thermal conductivity of at least 1 W/m-K between the device and the heat sink. Ensure good airflow and avoid blocking the airflow around the device.
  • Power up the device in the following sequence: VCC, then VEN, then RF input. Power down in the reverse sequence. This ensures proper biasing and prevents damage to the device.
  • Check the PCB layout for any defects or damage. Verify the power supply voltage and current. Check the RF input and output connections for any damage or corrosion. Use a spectrum analyzer to measure the output spectrum and identify any spurious signals.
  • Yes, but ensure that the two devices are properly matched and biased. Use a common mode choke or a balun to combine the outputs. Take care to maintain the same thermal environment for both devices.
