A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The device should be placed near the edge of the board to minimize signal loss. A microstrip or coplanar waveguide transmission line should be used to connect the device to the antenna.
Use a Smith chart to optimize the impedance matching. The QPM1002SR has a complex impedance of 10-j*10 ohms at 2.4 GHz. Use a pi-network or a T-network to match the impedance to 50 ohms. The values of the matching components can be calculated using a Smith chart or an impedance matching tool.
The QPM1002SR can handle up to 2W of continuous wave (CW) power. However, the device can handle higher peak powers for short durations. It's recommended to derate the power handling based on the duty cycle and pulse width of the signal.
Use a low-noise amplifier (LNA) before the QPM1002SR to reduce the noise figure. The LNA should be optimized for the frequency band of interest. Additionally, use a high-quality, low-loss transmission line to connect the LNA to the QPM1002SR.
The QPM1002SR operates from -40°C to 85°C. However, the device's performance may degrade at extreme temperatures. It's recommended to operate the device within the recommended temperature range for optimal performance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
QPM1002SR Overview

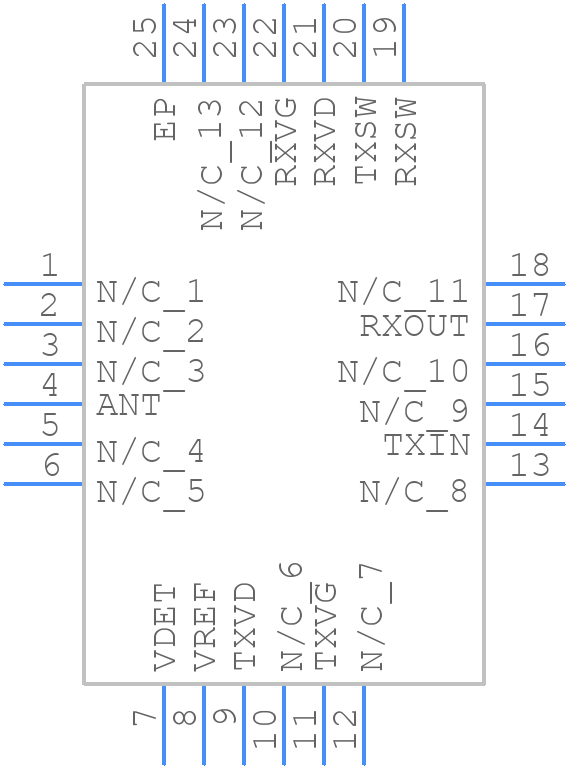

Use the download button to access the QPM1002SR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like QPM10,
or try a keyword search, such as Other Telecom ICs
