Qorvo provides a recommended PCB layout and land pattern in their application note AN-2171, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
The biasing network should be optimized for the specific application and frequency range. Qorvo recommends using their simulation models and design tools, such as Qorvo's GaN Device Model and the QPM1002TR7 Evaluation Board, to optimize the biasing network. Additionally, consulting with Qorvo's application engineers or experienced RF designers can be helpful.
While the datasheet specifies an operating temperature range of -40°C to 85°C, Qorvo recommends derating the device's power handling and frequency range at higher temperatures to ensure reliability and prevent thermal runaway. Consult with Qorvo's application engineers for specific guidance on temperature derating.
Proper matching is critical for optimal performance. Qorvo recommends using their simulation models and design tools to optimize the matching network. Additionally, measuring the device's S-parameters and using a network analyzer can help ensure proper matching. Qorvo's application engineers can also provide guidance on matching network design.
Qorvo provides guidelines for assembly and handling procedures in their application note AN-2171. It's essential to follow these guidelines to prevent damage to the device and ensure reliable operation. Additionally, following standard ESD handling procedures and using a clean and dry assembly environment is crucial.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
QPM1002TR7 Overview

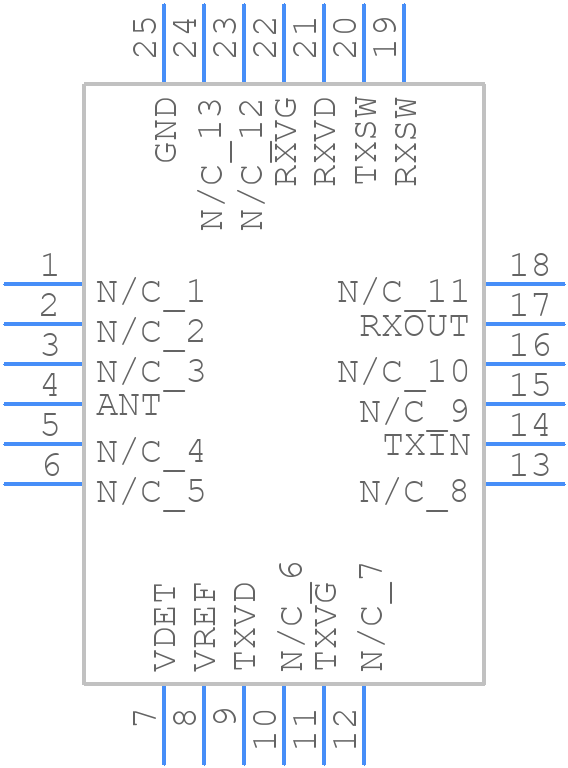

Use the download button to access the QPM1002TR7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like QPM10,
or try a keyword search, such as Other Telecom ICs
About Qorvo
Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
