Qorvo provides a recommended PCB layout and thermal management guide in their application note AN-2171, which includes guidelines for thermal vias, heat sinks, and PCB stack-up to ensure optimal performance and thermal dissipation.
Qorvo offers a free online tool called Qorvo's GaN Device Model and S-Parameter Tool, which allows users to simulate and optimize the biasing and matching networks for their specific application. Additionally, Qorvo's application engineers can provide custom support and guidance.
While the datasheet specifies a maximum operating temperature of 150°C, Qorvo recommends derating the device's power output and operating temperature to ensure reliable operation and extend the device's lifespan. Consult with Qorvo's application engineers for specific guidance.
Follow Qorvo's recommended assembly and handling procedures, ensure proper PCB cleaning and drying, and avoid exposing the device to excessive moisture or mechanical stress. Additionally, implement proper thermal management, over-voltage protection, and ESD protection in your design.
While the QPP2209TR7 is designed for RF applications, its high-power and high-frequency capabilities make it suitable for non-RF applications like DC-DC converters. However, consult with Qorvo's application engineers to ensure the device meets your specific requirements and to discuss any necessary modifications or custom designs.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
QPP2209TR7 Overview

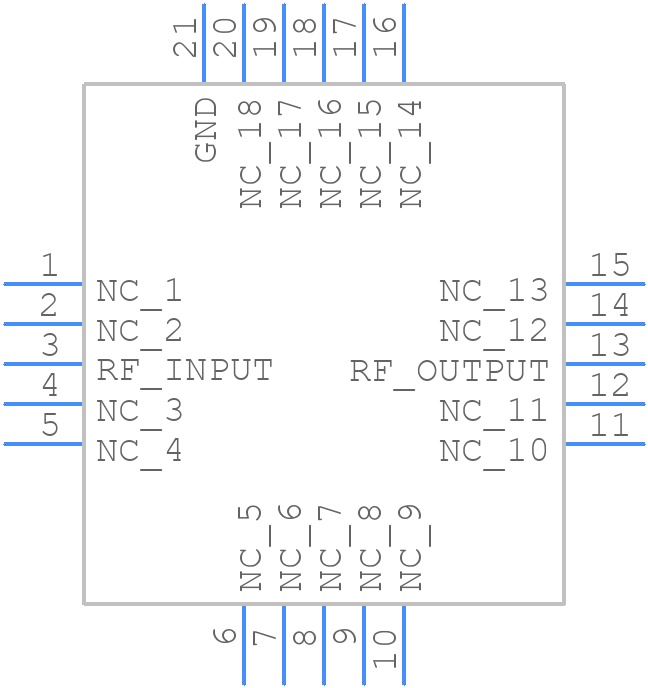

Use the download button to access the QPP2209TR7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like QPP22,
or try a keyword search, such as RF/Microwave Limiters
About Qorvo
Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
