Qorvo provides a recommended PCB layout and land pattern in their application note AN-2171, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
The biasing network should be designed to provide a stable voltage supply to the device. A good starting point is to use a resistive divider network with a voltage regulator, and then optimize the values based on the specific application requirements. Qorvo's application note AN-2171 provides more detailed guidance.
While the datasheet specifies an operating temperature range of -40°C to 85°C, it's essential to note that the device's performance may degrade at higher temperatures. For optimal performance, it's recommended to operate the device within a temperature range of -20°C to 70°C.
The QPQ1295TR7 has built-in ESD protection, but it's still essential to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and ensure that the device is handled in a static-safe environment.
Store the QPQ1295TR7 in a dry, cool place, away from direct sunlight and moisture. Avoid exposing the device to mechanical stress, and handle it by the package body, rather than the leads. Follow the guidelines outlined in Qorvo's packaging and storage document.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
QPQ1295TR7 Overview

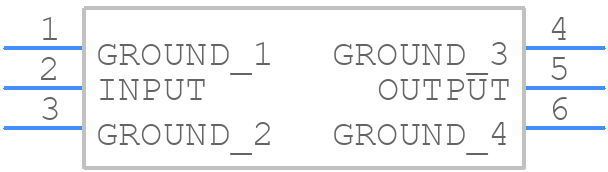

Use the download button to access the QPQ1295TR7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like QPQ12,
or try a keyword search, such as SAW Filters
About Qorvo
Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
