QS3253S1G8 - Renesas Electronics

Description: The QS3253 is a high-speed CMOS TTL-compatible dual 4:1 multiplexer/ demultiplexer with 3-state outputs. The QS3253 is function and pinout compatible version of the 74F253, 74FCT253, and the 74ALS/AS/ LS253 dual 4:1 multiplexers. The low ON resistance of the QS3253 allows inputs to be connected to outputs without adding propagation delay and without generating additional ground bounce noise. The QS3253 operates at -40C to +85C.

Download QS3253S1G8 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

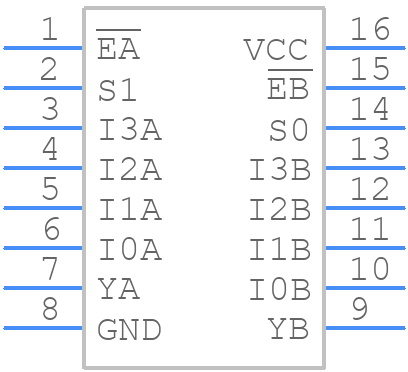

Symbol
QS3253S1G8 - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
QS3253S1G8 - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - DCG16--ren1
click to zoom
3D Models
QS3253S1G8 - Renesas Electronics - 3D model - Small Outline Packages - DCG16--ren1
click to zoom

QS3253S1G8 Details

  • Manufacturer Part Number:

    QS3253S1G8

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Pin Count:

    16

  • Manufacturer Package Code:

    DCG16

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Control Type:

    ENABLE LOW

  • Count Direction:

    BIDIRECTIONAL

  • Family:

    CBT/FST/QS/5C/B

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    BUS EXCHANGER

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    4

  • Number of Functions:

    2

  • Number of Ports:

    5

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Prop. Delay@Nom-Sup:

    0.25 ns

  • Propagation Delay (tpd):

    0.25 ns

  • Qualification Status:

    Not Qualified

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

QS3253S1G8 Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (APN) documents, which includes thermal vias, thermal pads, and heat sink recommendations to ensure optimal thermal performance.
  • The QS3253S1G8 has an internal overcurrent protection (OCP) feature, but it's recommended to add an external OCP circuit to ensure reliable operation. Renesas provides guidelines for implementing OCP in their application notes and design guides.
  • The recommended input capacitor value and type depend on the specific application and operating conditions. Renesas recommends using a low-ESR ceramic capacitor with a value between 4.7uF to 10uF, but the optimal value should be determined through simulation and testing.
  • Renesas provides EMC guidelines and recommendations in their application notes and design guides, including layout considerations, filtering, and shielding techniques to ensure EMC compliance.
  • The QS3253S1G8 has an operating temperature range of -40°C to +125°C, but the maximum operating temperature range may vary depending on the specific application and operating conditions. It's recommended to consult with Renesas or a qualified engineer to determine the maximum operating temperature range for a specific design.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

QS3253S1G8 Overview

Use the download button to access the QS3253S1G8 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like QS325, or try a keyword search, such as Bus Driver/Transceivers
