QS32X861Q1G - Renesas Electronics

Description: The QS32X861 provides two sets of ten high-speed CMOS TTL-compatible bus switches. The low ON resistance of the QS32X861 allows inputs to be connected to outputs without adding propagation delay and without generating additional ground bounce noise. The QS32X861 bus switch is ideal for switching digital buses, as well as for hotplug buffering and 5V to 3V conversion. The QS32X861 operates at -40C to +85C.

Download QS32X861Q1G Model

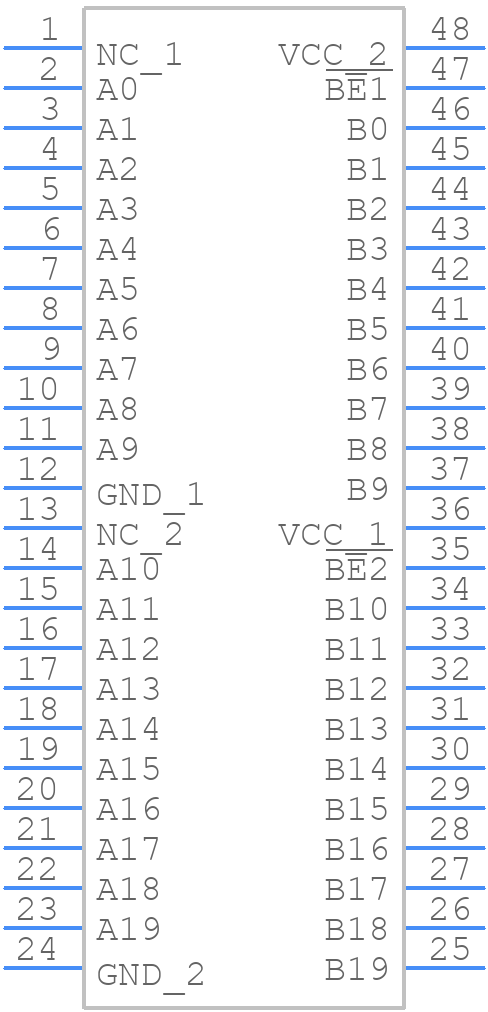

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
QS32X861Q1G - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - QS32X861Q1G
click to zoom
3D Models
QS32X861Q1G - Renesas Electronics  - 3D model - Small Outline Packages - QS32X861Q1G
click to zoom

QS32X861Q1G Details

  • Manufacturer Part Number:

    QS32X861Q1G

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QVSOP

  • Package Description:

    QVSOP-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    DJG48

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Control Type:

    ENABLE LOW

  • Count Direction:

    UNIDIRECTIONAL

  • Family:

    CBT/FST/QS/5C/B

  • JESD-30 Code:

    R-PDSO-G48

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    BUS DRIVER

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    10

  • Number of Functions:

    2

  • Number of Ports:

    2

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    SSOP48,.24,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

QS32X861Q1G Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to apply VCC first, followed by VDD, and then the clock signal. This ensures proper initialization of the internal voltage regulators and prevents latch-up.
  • To configure the QS32X861Q1G for low-power operation, use the Power Management Unit (PMU) to select the desired power mode (e.g., idle, sleep, or deep sleep). Additionally, disable unused peripherals and adjust the clock frequency to minimize power consumption.
  • The maximum allowed capacitance for the VCC and VDD pins is 10uF. Exceeding this value may cause power-on reset issues or affect the stability of the internal voltage regulators.
  • The QS32X861Q1G has a built-in watchdog timer (WDT) that can be enabled and configured using the Watchdog Timer Control Register (WTCR). Set the WTCR to enable the WDT, and then periodically reset the WDT using the Watchdog Timer Reset Register (WTRR) to prevent a system reset.
  • The maximum frequency for the external clock input is 24 MHz. Exceeding this frequency may cause clock signal degradation or affect the stability of the internal clock circuitry.
