Description:The QS34X2245 provides a set of 32 high-speed CMOS compatible bus switches in a flow-through pinout. The low ON-resistance of the QS34X2245 allows inputs to be connected to outputs without adding propagation delay and without generating additional ground bounce noise. Internal 25 ohm resistors reduce reflection noise in high-speed applications. This device is ideally suited for 32/64 bit applications where board space is at a premium. The QS34X2245 operates at -40C to +85C.
The recommended operating temperature range for the QS34X2245Q3G is -40°C to 125°C, as specified in the datasheet. However, it's essential to note that the device's performance and reliability may degrade if operated outside this range for extended periods.
To ensure proper power and decoupling, follow the recommended power supply and decoupling capacitor values specified in the datasheet. Additionally, use a low-ESR capacitor (e.g., ceramic or film capacitor) with a value of at least 10nF, placed as close as possible to the VCC pin. This helps to filter out noise and ensure stable operation.
The QS34X2245Q3G supports a maximum clock frequency of 100 MHz, as specified in the datasheet. However, the actual clock frequency may be limited by the system design, PCB layout, and signal integrity considerations.
The QS34X2245Q3G has a JTAG interface that supports boundary scan and debugging. To handle the JTAG interface, follow the IEEE 1149.1 standard and use a JTAG debugger or emulator that supports the device's specific JTAG implementation. Ensure that the JTAG pins are properly connected and terminated to prevent signal degradation.
When designing with the QS34X2245Q3G, it's essential to follow good PCB layout practices to ensure signal integrity and minimize noise. Keep signal traces short, use controlled impedance, and avoid crossing sensitive signals over each other. Also, use a solid ground plane and decouple the power supply lines to reduce noise and electromagnetic interference (EMI).
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
QS34X2245Q3G Overview

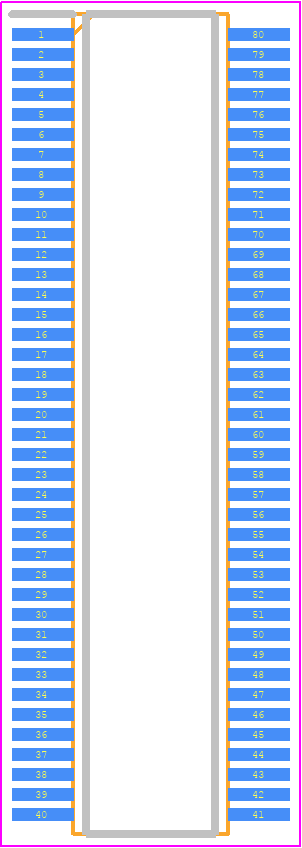

Use the download button to access the QS34X2245Q3G schematic symbol, PCB footprint, and 3D model.
