Description:The QS34X2245 provides a set of 32 high-speed CMOS compatible bus switches in a flow-through pinout. The low ON-resistance of the QS34X2245 allows inputs to be connected to outputs without adding propagation delay and without generating additional ground bounce noise. Internal 25 ohm resistors reduce reflection noise in high-speed applications. This device is ideally suited for 32/64 bit applications where board space is at a premium. The QS34X2245 operates at -40C to +85C.
The recommended operating temperature range for the QS34X2245Q3G8 is -40°C to 125°C, as specified in the datasheet. However, it's essential to note that the device can tolerate a wider temperature range during storage, which is -55°C to 150°C.
To ensure reliable communication in a noisy environment, it's crucial to follow proper PCB design guidelines, use adequate noise filtering, and implement error detection and correction mechanisms in your firmware. Additionally, consider using differential signaling and shielding to minimize electromagnetic interference (EMI).
The QS34X2245Q3G8 supports a maximum clock frequency of 100 MHz, as specified in the datasheet. However, the actual clock frequency may be limited by the specific application and system design.
To configure the QS34X2245Q3G8 for low-power operation, refer to the datasheet and application notes provided by Renesas Electronics Corporation. You can also consider using power-saving modes, such as sleep or standby, and optimizing your firmware to minimize power consumption.
The recommended decoupling capacitors for the QS34X2245Q3G8 are typically 0.1 μF to 1 μF ceramic capacitors, placed as close as possible to the power pins. The exact value and type of capacitor may vary depending on the specific application and PCB design.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
QS34X2245Q3G8 Overview

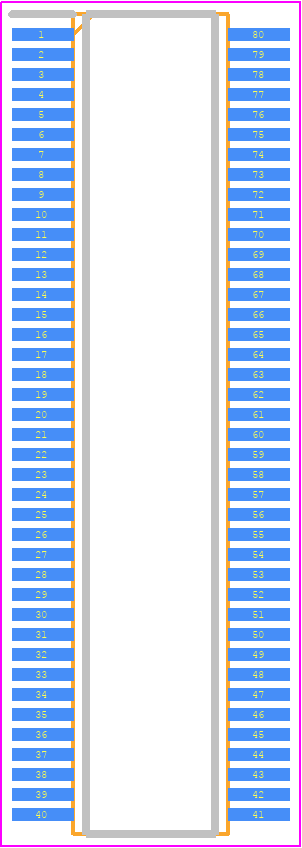

Use the download button to access the QS34X2245Q3G8 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like QS34X,
or try a keyword search, such as Bus Driver/Transceivers
