Description:The QS34X383 provides four sets of eight high-speed CMOS TTL-compatible bus switches. The low ON resistance (5 ohm) of the QS34X383 allows inputs to be connected to outputs without adding propagation delay and without generating additional ground bounce noise. The Bus exchange configuration allows byte swapping of buses in systems. It can also be used as a 16-bit 2-to-1 multiplexer and to create low delay barrel shifters, etc. The QS34X383 operates at -40C to +85C.
Renesas provides a recommended PCB layout guide in their application note (APN) documents, which includes guidelines for thermal vias, copper pours, and component placement to ensure optimal thermal performance.
The QS34X383Q3G has an internal overcurrent protection feature, but it's recommended to add external overcurrent protection circuitry, such as a fuse or a current sense resistor, to provide additional protection against overcurrent conditions.
The recommended power-up sequence is to apply the power supply voltage (VCC) first, followed by the input voltage (VIN), and then the enable signal (EN). This sequence helps prevent unwanted startup conditions and ensures proper device operation.
To troubleshoot output voltage regulation issues, check the input voltage, output load, and feedback resistors. Ensure that the input voltage is within the recommended range, the output load is within the specified current limit, and the feedback resistors are correctly configured. Also, verify that the device is properly configured and that there are no layout or component issues affecting the output voltage regulation.
The maximum junction temperature (Tj) for the QS34X383Q3G is 150°C. It's essential to ensure that the device operates within the recommended temperature range to prevent thermal damage and ensure reliable operation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
QS34X383Q3G Overview

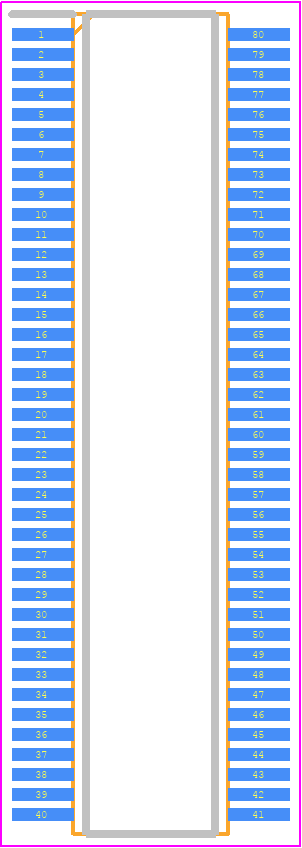

Use the download button to access the QS34X383Q3G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like QS34X,
or try a keyword search, such as Bus Driver/Transceivers
