QS3VH126S1G - Renesas Electronics

Description: The QS3VH126 is a high bandwidth bus switch. The QS3VH126 has very low ON resistance, resulting in under 250ps propagation delay through the switch. The switches can be turned ON under the control of individual LVTTL-compatible active high Output Enable signals for bidirectional data flow with no added delay or ground bounce. The combination of near-zero propagation delay, high OFF impedance, and over-voltage tolerance makes the QS3VH126 ideal for high performance communications applications. The QS3VH126 i

Download QS3VH126S1G Model

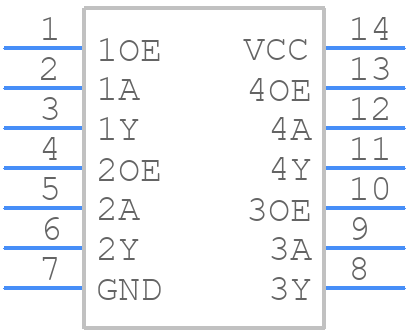

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
QS3VH126S1G - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - dcg14
click to zoom
3D Models
QS3VH126S1G - Renesas Electronics  - 3D model - Small Outline Packages - dcg14
click to zoom

QS3VH126S1G Details

  • Manufacturer Part Number:

    QS3VH126S1G

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Pin Count:

    14

  • Manufacturer Package Code:

    DCG14

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Family:

    CB3Q/3VH/3C/2B

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    8.6614 mm

  • Logic IC Type:

    BUS DRIVER

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    1

  • Number of Functions:

    4

  • Number of Ports:

    2

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Propagation Delay (tpd):

    0.2 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.7272 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.3 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9116 mm

QS3VH126S1G Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (APN) document, which includes guidelines for signal routing, power supply decoupling, and thermal management to ensure optimal performance and minimize noise.
  • The QS3VH126S1G has a thermal pad on the bottom of the package, which should be connected to a thermal ground plane on the PCB to dissipate heat. Additionally, Renesas recommends using thermal vias and thermal interface material to improve heat dissipation.
  • The QS3VH126S1G can operate up to 1.5 GHz, but the maximum operating frequency depends on the specific application and signal integrity requirements. Renesas recommends consulting their application notes and simulation tools to determine the optimal operating frequency for a specific design.
  • Renesas recommends using controlled impedance traces, minimizing signal routing lengths, and using signal termination resistors to ensure signal integrity. Additionally, simulation tools such as IBIS-AMI models can be used to simulate signal behavior and optimize the design.
  • The power consumption of the QS3VH126S1G depends on the specific application and operating conditions. Renesas provides power consumption estimates in their datasheet, but actual power consumption may vary. Engineers should consult the datasheet and application notes for more information.
