Description:The QS3VH16210 HotSwitch is organized as a dual 10-bit, 2-port bus switch with separate, xOE control inputs. The QS3VH16210 has very low ON resistance, resulting in under 250ps propagation delay through the switch. The switches are controlled by active low enable (xOE) controls. The combination of near-zero propagation delay, high OFF impedance, and over-voltage tolerance makes the QS3VH16210 ideal for high performance communications applications. The QS3VH16210 operates from -40C to +85C.
Renesas provides a recommended PCB layout guide in their application note (R01AN4461EJ0100) which includes guidelines for signal routing, power supply decoupling, and thermal management to ensure optimal performance and minimize signal integrity issues.
To minimize crosstalk, it is recommended to use differential signaling, keep signal traces short and away from power planes, use shielding or guard rings around sensitive signals, and maintain a consistent impedance throughout the signal path. Additionally, Renesas provides guidelines for signal routing and spacing in their application note.
The QS3VH16210PAG is rated for operation from -40°C to +125°C, but it's recommended to derate the device's performance and power consumption at higher temperatures to ensure reliability and prevent thermal shutdown.
Renesas recommends a specific power sequencing scheme to ensure proper device operation and POR. The power supply voltage (VCC) should be applied before the input signals, and the POR circuitry will reset the device when VCC reaches a minimum threshold (typically 0.8V).
The QS3VH16210PAG has built-in ESD protection diodes on all input and output pins, which can withstand up to 2kV of ESD voltage. Additionally, Renesas recommends following proper PCB design and handling practices to prevent latch-up and ESD damage.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
QS3VH16210PAG Overview

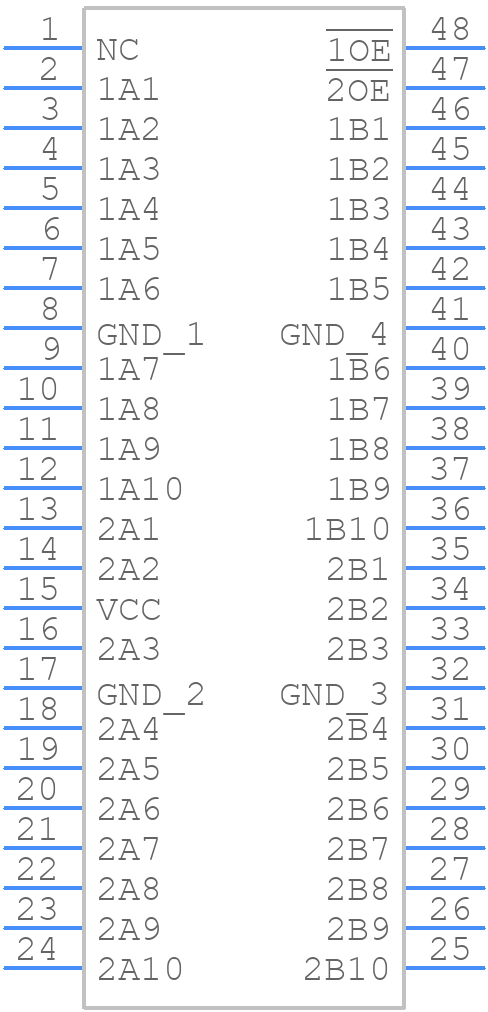

Use the download button to access the QS3VH16210PAG schematic symbol, PCB footprint, and 3D model.
