Description:The QS3VH251 HotSwitch Quad 2:1 multiplexer/demultiplexer is a high bandwidth bus switch with very low ON resistance, resulting in under 250ps propagation delay through the switch. The combination of near-zero propagation delay, high OFF impedance, and over-voltage tolerance makes the QS3VH251 ideal for high performance comminucation applications. The QS3VH251 operates from -40C to +85C.
Renesas provides a recommended PCB layout guide in their application note (APN) document, which includes guidelines for signal routing, power supply decoupling, and ground plane design to ensure optimal signal integrity and minimize electromagnetic interference (EMI).
To ensure reliable operation in high-temperature environments, it is essential to follow the recommended operating conditions and thermal management guidelines provided in the datasheet. This includes using a heat sink, ensuring good airflow, and avoiding thermal hotspots. Additionally, Renesas provides thermal simulation models and thermal design guidelines to help designers optimize their system design.
Renesas provides guidelines for power sequencing and reset strategies in their application note (APN) document. The recommended approach involves a controlled power-up sequence, followed by a reset pulse to ensure proper initialization of the device. The APN document also provides guidance on power-down sequencing to prevent damage to the device.
Renesas provides a range of troubleshooting tools and resources, including a debug guide, IBIS models, and simulation models. Designers can use these resources to simulate and analyze the behavior of the QS3VH251QG in their system design. Additionally, Renesas offers technical support and design assistance to help designers troubleshoot and resolve issues.
When using the QS3VH251QG in a system with multiple voltage domains, it is essential to ensure that the device is properly powered and that voltage transitions are managed correctly. Renesas provides guidelines for voltage domain crossing and power domain management in their application note (APN) document. Designers should also consider using voltage translation devices or level shifters to ensure proper signal integrity and prevent damage to the device.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
QS3VH251QG Overview

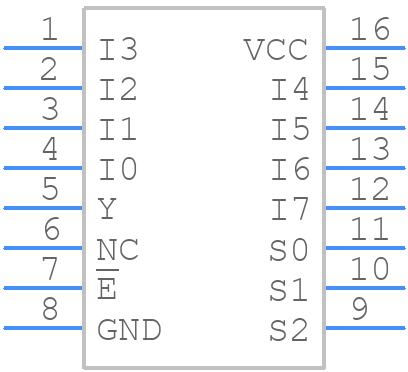

Use the download button to access the QS3VH251QG schematic symbol, PCB footprint, and 3D model.
