QS3VH384QG - Renesas Electronics

Description: The QS3VH384 HotSwitch is a high bandwidth, 10-bit bus switch with very low ON resistance, resulting in under 250ps propagation delay through the switch. Two banks of five switches are controlled by independent (xOE), LVTTL compatible signals for bidirectional data flow with no added delay or ground bounce. The combination of near-zero propagation delay, high OFF impedance, and over-voltage tolerance makes the QS3VH384 ideal for high performance communications applications. The QS3VH384 operates from -40C t

Download QS3VH384QG Model

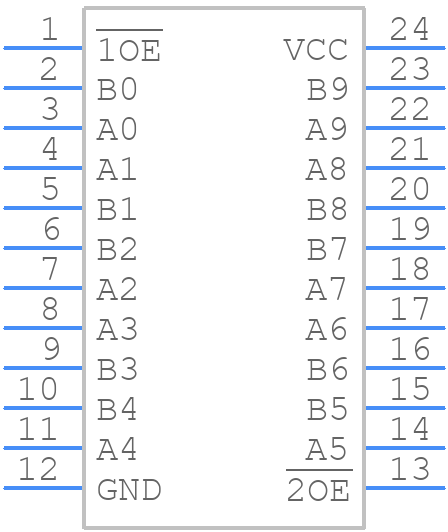

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
QS3VH384QG - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - PCG24
click to zoom
3D Models
QS3VH384QG - Renesas Electronics  - 3D model - Small Outline Packages - PCG24
click to zoom

QS3VH384QG Details

  • Manufacturer Part Number:

    QS3VH384QG

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QSOP

  • Pin Count:

    24

  • Manufacturer Package Code:

    PCG24

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Family:

    CB3Q/3VH/3C/2B

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    8.65 mm

  • Logic IC Type:

    BUS DRIVER

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    5

  • Number of Functions:

    2

  • Number of Ports:

    2

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Propagation Delay (tpd):

    0.2 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.3 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9116 mm

QS3VH384QG Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (R01AN4461EJ0100) which includes guidelines for signal routing, power supply decoupling, and thermal management to ensure optimal performance and minimize noise.
  • A reliable POR circuit can be implemented using an external voltage detector (such as the Renesas ISL88003) connected to the VCC pin, which ensures a clean power-up sequence and prevents unwanted resets. Additionally, a capacitor (e.g., 10uF) can be connected between VCC and GND to filter out noise and voltage droops.
  • Although the datasheet specifies an operating temperature range of -40°C to 125°C, it's essential to note that the device's performance and reliability may degrade at extreme temperatures. It's recommended to operate the device within a temperature range of -20°C to 100°C for optimal performance and reliability.
  • To ensure EMC and EMI compliance, follow Renesas' guidelines for PCB layout, component selection, and shielding. Additionally, consider using EMI filters, such as common-mode chokes or ferrite beads, on the device's I/O lines and power supply lines. It's also recommended to perform EMC and EMI testing to validate compliance with relevant standards.
  • The recommended termination resistors for high-speed interfaces depend on the specific interface and signal frequency. As a general guideline, use 50Ω to 75Ω resistors for PCIe and SATA interfaces, and follow the interface specification guidelines (e.g., PCIe 3.0 or SATA 3.0) for specific termination requirements.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

QS3VH384QG Overview

Use the download button to access the QS3VH384QG schematic symbol, PCB footprint, and 3D model.
