QS4A210QG8 - Renesas Electronics

Description: The QS4A210 is a high-performance CMOS two-channel SP4T multiplexer/ demultiplexer with individual enables. The QS4A210 with 700MHz bandwidth makes it ideal for high-performance video signal switching, audio signal switching, and telecom routing applications. Low power dissipation makes this device ideal for battery operated and remote instrumentation applications. The QS4A210 operates at -40C to +85C.

Download QS4A210QG8 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

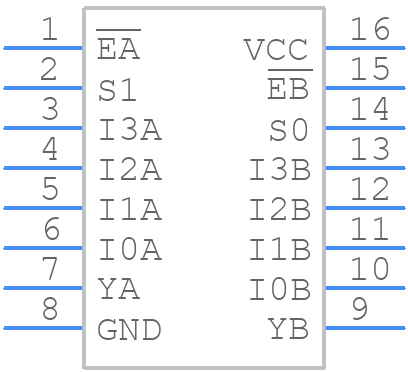

QS4A210QG8 - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
QS4A210QG8 - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - PCG16-ren1
click to zoom
3D Models
QS4A210QG8 - Renesas Electronics - 3D model - Small Outline Packages - PCG16-ren1
click to zoom

QS4A210QG8 Details

  • Manufacturer Part Number:

    QS4A210QG8

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QSOP

  • Pin Count:

    16

  • Manufacturer Package Code:

    PCG16

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Analog IC - Other Type:

    SP4T

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

QS4A210QG8 Overview

Use the download button to access the QS4A210QG8 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like QS4A2, or try a keyword search, such as Multiplexers or Switches
