QS5U17TR - ROHM Semiconductor

Description: MOSFET N-CH 30V 2A

Download QS5U17TR Model

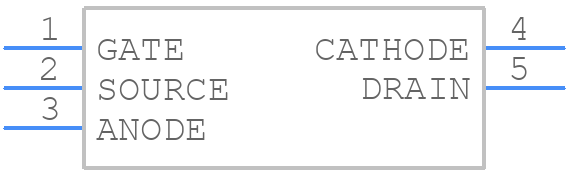

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
QS5U17TR - ROHM Semiconductor PCB footprint - SOT23 (5-Pin) - SOT23 (5-Pin) - TSMT5
click to zoom
3D Models
QS5U17TR - ROHM Semiconductor  - 3D model - SOT23 (5-Pin) - TSMT5
click to zoom

QS5U17TR Details

  • Manufacturer Part Number:

    QS5U17TR

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Package Description:

    TSMT5, 5 PIN

  • Pin Count:

    5

  • ECCN Code:

    EAR99

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    3

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    30 V

  • Drain Current-Max (ID):

    2 A

  • Drain-source On Resistance-Max:

    0.154 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    R-PDSO-G5

  • JESD-609 Code:

    e1

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    5

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    1 W

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    10

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

QS5U17TR Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the QS5U17TR is -40°C to 125°C.
  • The power-up sequence for the QS5U17TR is not critical, but it's recommended to power up the VCC pin first, followed by the input signals.
  • The maximum allowable voltage for the input pins of the QS5U17TR is 5.5V, which is the maximum rating for the device.
  • Yes, the QS5U17TR can be used in a 3.3V system, but the input high voltage (VIH) and input low voltage (VIL) levels should be adjusted accordingly.
  • The output current capability of the QS5U17TR is dependent on the output voltage and can be determined by referring to the output voltage vs. output current characteristic curve in the datasheet.
