QS5U28TR - ROHM Semiconductor

Description: 2.5V Drive Pch+SBD MOSFET

Download QS5U28TR Model

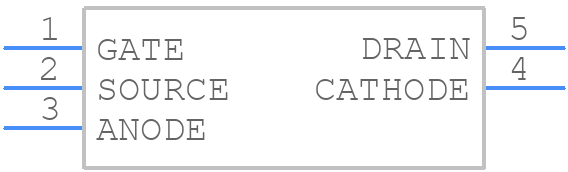

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
QS5U28TR - ROHM Semiconductor PCB footprint - Other - Other - TSMT5_2022
click to zoom
3D Models
QS5U28TR - ROHM Semiconductor  - 3D model - Other - TSMT5_2022
click to zoom

QS5U28TR Details

  • Manufacturer Part Number:

    QS5U28TR

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    TSMT5, 5 PIN

  • Pin Count:

    5

  • ECCN Code:

    EAR99

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    3

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    20 V

  • Drain Current-Max (ID):

    2 A

  • Drain-source On Resistance-Max:

    0.135 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    R-PDSO-G5

  • JESD-609 Code:

    e1

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    5

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    P-CHANNEL

  • Power Dissipation-Max (Abs):

    1.25 W

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    10

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

QS5U28TR Frequently Asked Questions (FAQs)

  • ROHM recommends a 4-layer PCB with a solid ground plane and a separate power plane for the VCC and GND pins. Additionally, keep the input and output traces short and away from noise sources.
  • To ensure proper power-on and power-off, ROHM recommends a soft-start circuit to limit the inrush current and prevent latch-up. A 1-2 ms power-on delay is also recommended to allow the internal voltage regulator to stabilize.
  • While the datasheet specifies an operating temperature range of -40°C to 125°C, ROHM recommends derating the device's performance at temperatures above 85°C to ensure reliability and prevent thermal shutdown.
  • Yes, the QS5U28TR is designed to withstand vibrations up to 10G. However, ROHM recommends following proper PCB mounting and soldering techniques to ensure the device remains securely attached to the board.
  • To troubleshoot output voltage regulation issues, check the input voltage, output load, and PCB layout. Ensure the input voltage is within the recommended range, the output load is within the specified current limit, and the PCB layout follows ROHM's recommended guidelines.
