Part Image

QSB35024S24 - XP POWER

Description: XP Power QSB350 350W Isolated DC-DC Converter PCB Mount, Vin 18 → 36 V dc, Vout 24V dc, I/O isolation 1.5kV dc

Download QSB35024S24 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

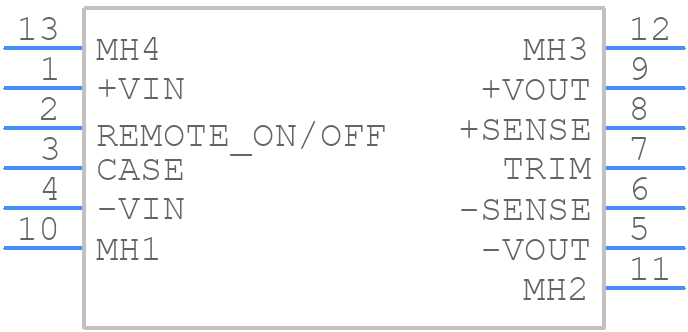

Symbol
QSB35024S24 - XP POWER - PCB symbol
click to zoom

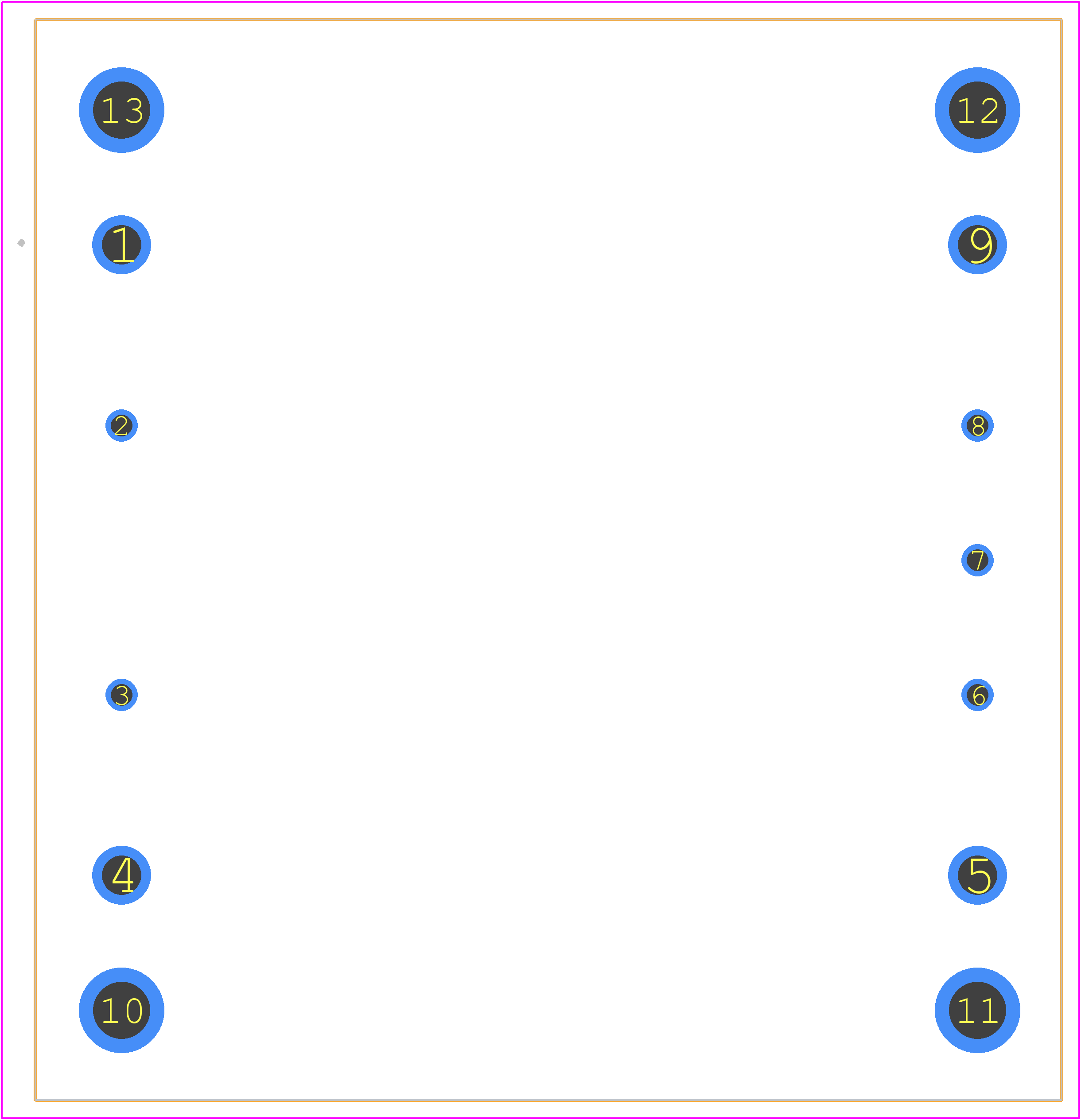

PCB Footprints
QSB35024S24 - XP POWER PCB footprint - Other - Other - QSB20024S12
click to zoom
3D Models
QSB35024S24 - XP POWER - 3D model - Other - QSB20024S12
click to zoom

QSB35024S24 Details

  • Manufacturer Part Number:

    QSB35024S24

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    XP Power

  • YTEOL:

    7

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    18 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-XDMA-P9

  • Length:

    61 mm

  • Load Regulation-Max:

    0.2%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    9

  • Output Voltage-Max:

    26.4 V

  • Output Voltage-Min:

    21.6 V

  • Output Voltage-Nom:

    24 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    13.7 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    350 W

  • Trim/Adjustable Output:

    YES

  • Width:

    57.9 mm

QSB35024S24 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the QSB35024S24 is -40°C to +100°C, with a derating of 2.5% per °C above 80°C.
  • To ensure reliability in high-vibration environments, it is recommended to follow XP Power's guidelines for mounting and securing the module, and to consider using additional mechanical support or vibration dampening measures if necessary.
  • Yes, the QSB35024S24 has a high isolation voltage of 3kV AC, making it suitable for applications requiring high isolation, such as medical devices or industrial control systems.
  • The recommended input capacitance for the QSB35024S24 is 2x 22μF, 25V, X7R ceramic capacitors, connected in parallel and placed as close as possible to the input pins.
  • To troubleshoot issues with the QSB35024S24, refer to XP Power's application notes and troubleshooting guides, and consider consulting with XP Power's technical support team or a qualified engineer.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

QSB35024S24 Overview

Use the download button to access the QSB35024S24 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like QSB35, or try a keyword search, such as Power Supply Modules
