QSB35024S3V3 - XP POWER

Description: XP Power QSB350 350W Isolated DC-DC Converter PCB Mount, Vin 18 → 36 V dc, Vout 3.3V dc, I/O isolation 1.5kV dc

Download QSB35024S3V3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

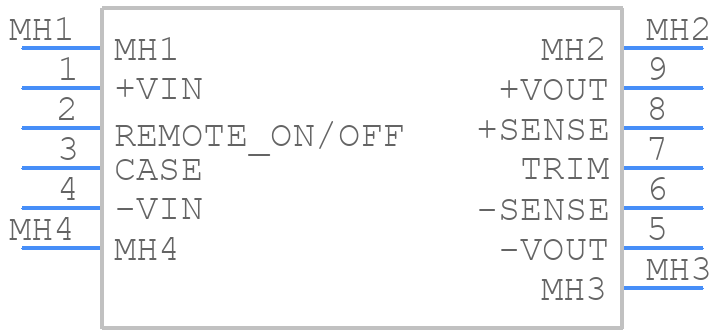

QSB35024S3V3 - XP POWER - PCB symbol
click to zoom
PCB Footprints

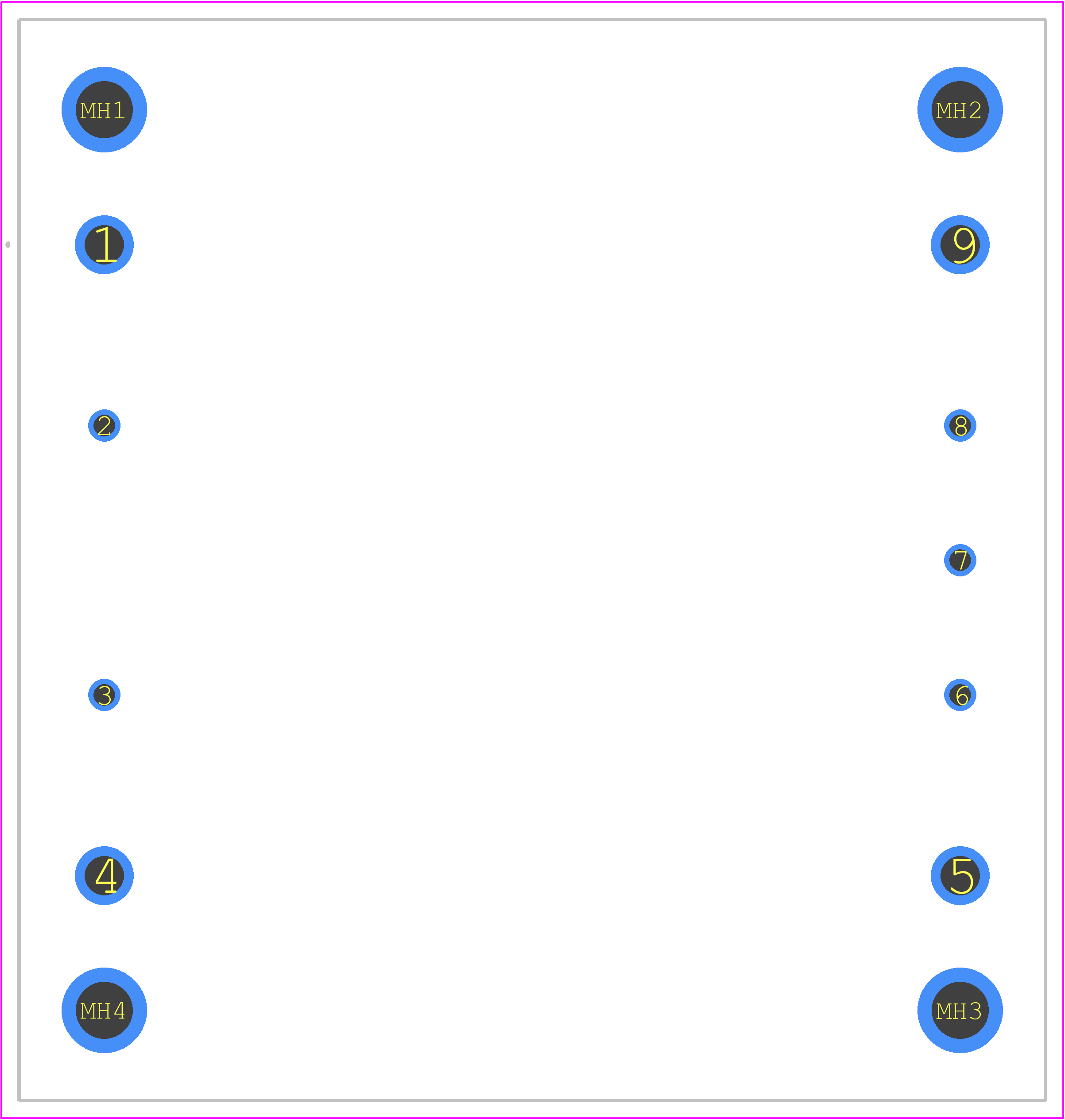

QSB35024S3V3 - XP POWER PCB footprint - Other - Other - QSB35024S3V3-1
click to zoom
3D Models
QSB35024S3V3 - XP POWER - 3D model - Other - QSB35024S3V3-1
click to zoom

QSB35024S3V3 Details

  • Manufacturer Part Number:

    QSB35024S3V3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    XP Power

  • YTEOL:

    7

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    18 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-XDMA-P9

  • Length:

    61 mm

  • Load Regulation-Max:

    0.2%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    9

  • Output Voltage-Max:

    3.63 V

  • Output Voltage-Min:

    2.97 V

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    13.7 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    231 W

  • Trim/Adjustable Output:

    YES

  • Width:

    57.9 mm

QSB35024S3V3 Frequently Asked Questions (FAQs)

  • The maximum capacitance load for the QSB35024S3V3 is 10uF. Exceeding this value may affect the stability of the output voltage.
  • The QSB35024S3V3 is rated for operation up to 80°C, but derating is required above 60°C. Consult the datasheet for derating curves and ensure proper thermal management.
  • The QSB35024S3V3 meets various safety certifications, including UL60950-1, EN60950-1, and IEC60950-1. However, it's essential to review the certification reports and ensure compliance with your specific application requirements.
  • The recommended input voltage range for the QSB35024S3V3 is 18V to 36V. Operating outside this range may affect the performance and reliability of the device.
  • Yes, you can parallel multiple QSB35024S3V3 modules to increase the output current. However, ensure proper synchronization and current sharing to avoid uneven current distribution and potential reliability issues.
