QSB40048S24 - XP POWER

Description: Isolated DC/DC Converters - Through Hole DC-DC CONVERTER 400W

Download QSB40048S24 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

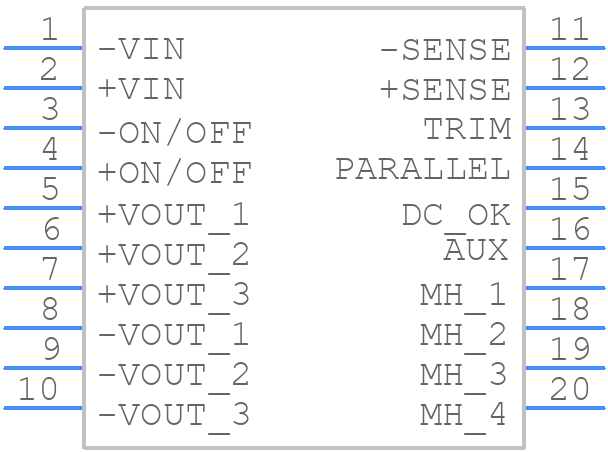

QSB40048S24 - XP POWER - PCB symbol
click to zoom
PCB Footprints

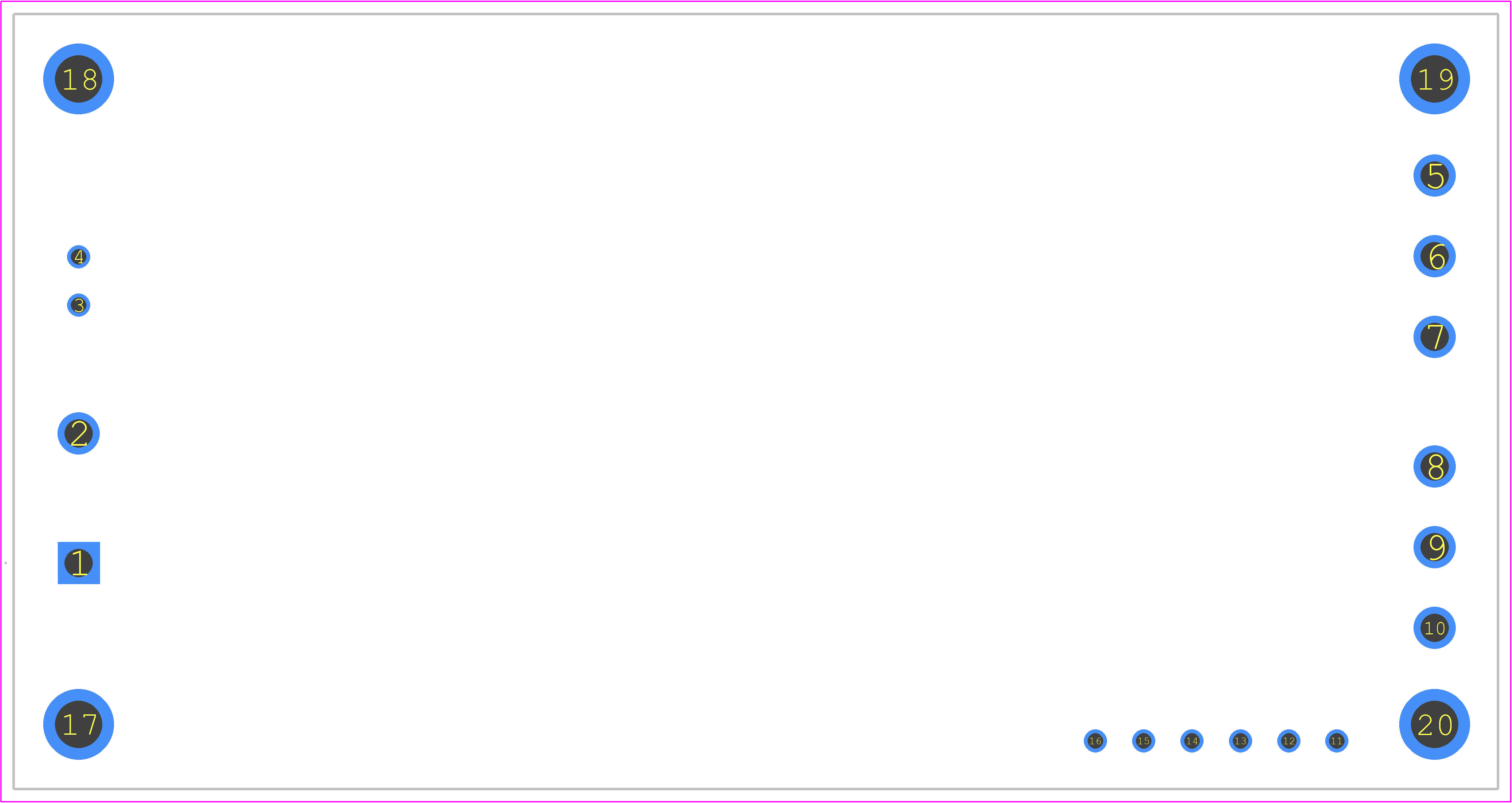

QSB40048S24 - XP POWER PCB footprint - Other - Other - QSB40048S24-1
click to zoom
3D Models
QSB40048S24 - XP POWER - 3D model - Other - QSB40048S24-1
click to zoom

QSB40048S24 Details

  • Manufacturer Part Number:

    QSB40048S24

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Date Of Intro:

    2019-06-24

  • Manufacturer:

    XP Power

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • JESD-609 Code:

    e3

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Terminal Finish:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

QSB40048S24 Frequently Asked Questions (FAQs)

  • The maximum capacitance load for the QSB40048S24 is 0.1uF to 10uF, depending on the output voltage and frequency. It's recommended to consult with XP Power's application engineers for specific guidance.
  • The QSB40048S24 has a standard operating temperature range of -40°C to +85°C. However, it can be derated for high-temperature applications up to +100°C with reduced output power. Consult XP Power's application engineers for specific guidance.
  • The recommended input fuse rating for the QSB40048S24 is 5A to 10A, depending on the input voltage and system requirements. It's recommended to consult with XP Power's application engineers for specific guidance.
  • Yes, the QSB40048S24 can be used in a redundant configuration to achieve high reliability and fault tolerance. However, it's recommended to consult with XP Power's application engineers to ensure proper implementation and to discuss specific requirements.
  • The MTBF rating for the QSB40048S24 is typically in the range of 1 million to 2 million hours, depending on the operating conditions and environment. Consult XP Power's reliability data for specific information.
