QSB40048S48 - XP POWER

Description: XP Power QSB400 400W Isolated DC-DC Converter PCB Mount, Vin 18 → 75 V dc, Vout 48V dc, I/O isolation 1.5kV dc

Download QSB40048S48 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

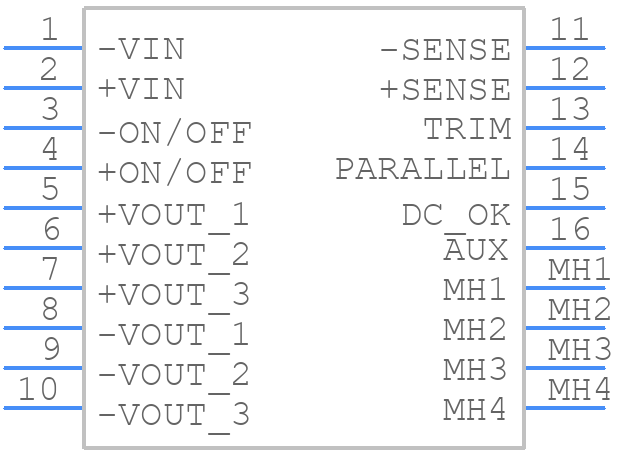

QSB40048S48 - XP POWER - PCB symbol
click to zoom
PCB Footprints

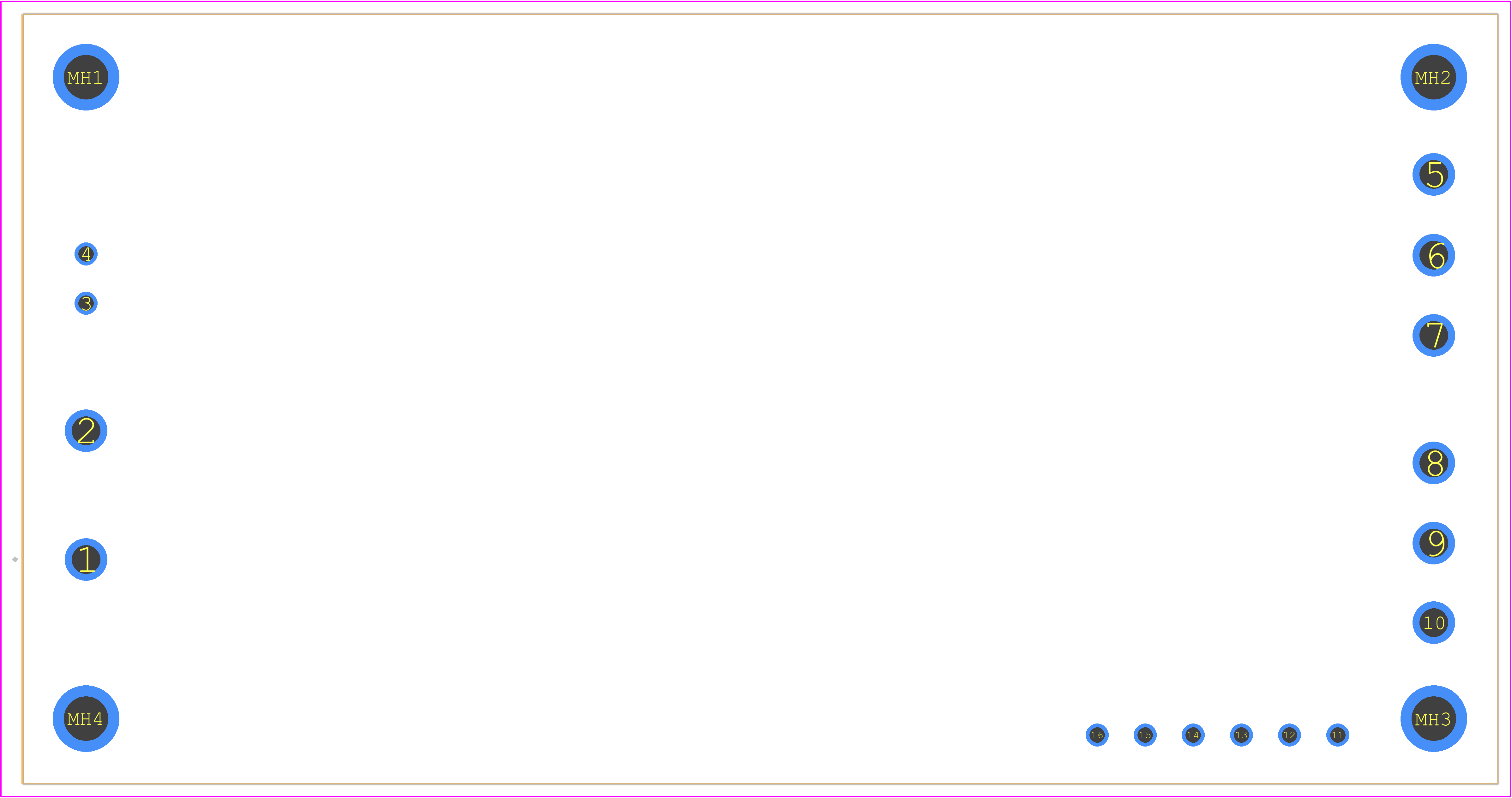

QSB40048S48 - XP POWER PCB footprint - Other - Other - QSB40048S48-1
click to zoom
3D Models
QSB40048S48 - XP POWER - 3D model - Other - QSB40048S48-1
click to zoom

QSB40048S48 Details

  • Manufacturer Part Number:

    QSB40048S48

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Date Of Intro:

    2019-06-24

  • Manufacturer:

    XP Power

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • JESD-609 Code:

    e3

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Terminal Finish:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

QSB40048S48 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the QSB40048S48 is -40°C to +100°C, with derating above 80°C.
  • Yes, the QSB40048S48 is designed to withstand high-vibration environments and meets the IEC 60068-2-6 vibration test standard.
  • Yes, the QSB40048S48 is compliant with UL60950-1, EN60950-1, and IEC60950-1 safety standards for IT equipment.
  • The typical efficiency of the QSB40048S48 is around 92-94% at full load, depending on the input voltage and output configuration.
  • Yes, the QSB40048S48 can be paralleled for higher power output, but it requires a special configuration and XP Power's approval.
