QSE-020-01-F-D - SAMTEC

Description: Conn High Speed Socket Strip SKT 40 POS 0.8mm Solder ST SMD Tray

Download QSE-020-01-F-D Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

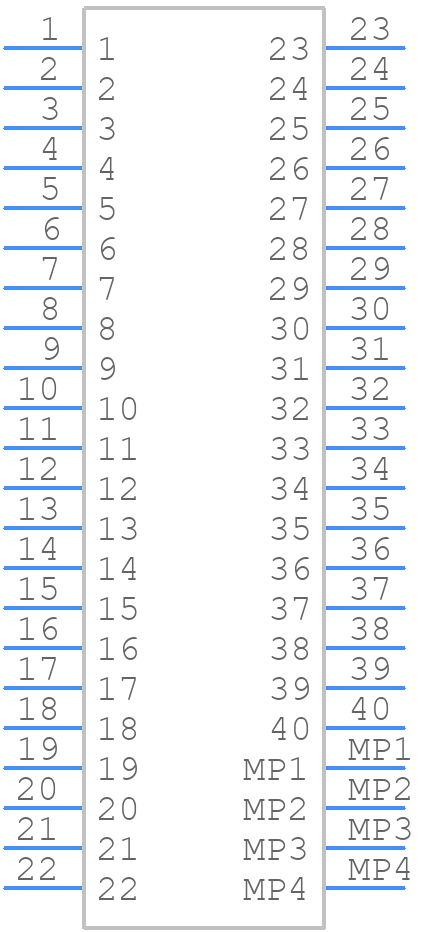

QSE-020-01-F-D - SAMTEC - PCB symbol
click to zoom
PCB Footprints
QSE-020-01-F-D - SAMTEC PCB footprint - Other - Other - QSE-020-01-F-D-6
click to zoom
3D Models
QSE-020-01-F-D - SAMTEC - 3D model - Other - QSE-020-01-F-D-6
click to zoom

QSE-020-01-F-D Details

  • Manufacturer Part Number:

    QSE-020-01-F-D

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Costa Rica, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    4 Weeks, 5 Days

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    8.68

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    BOARD STACKING CONNECTOR

  • Contact Finish Mating:

    GOLD (3)

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    0.8 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    40

  • UL Flammability Code:

    94V-0

QSE-020-01-F-D Frequently Asked Questions (FAQs)

  • The recommended mating sequence for QSE-020-01-F-D is to mate the connectors by aligning the guides on the plug and receptacle, then applying gentle pressure while ensuring the connectors are properly seated.
  • Yes, the QSE-020-01-F-D is designed to withstand high-vibration environments. Samtec's QSE series connectors are tested to meet the requirements of IEC 61373 Category II, which includes vibration testing.
  • The maximum operating temperature for QSE-020-01-F-D is 125°C (257°F). However, it's recommended to derate the current carrying capacity of the connector at higher temperatures.
  • The QSE-020-01-F-D has a sealed design that provides protection against moisture and other environmental factors. However, it's essential to follow proper cleaning and handling procedures to ensure the connector's reliability in harsh environments.
  • The QSE-020-01-F-D has a standard mating height of 1mm, but Samtec offers variations with different mating heights and stack heights. It's recommended to consult with Samtec's technical support or review their documentation to determine the best option for your specific application.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

QSE-020-01-F-D Overview

Use the download button to access the QSE-020-01-F-D schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like QSE-0, or try a keyword search, such as Headers and Edge Type Connectors
