QSH-100-01-L-D-DP - SAMTEC

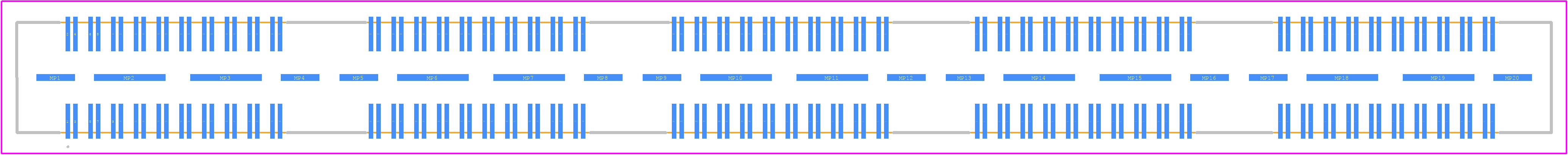

QSH-100-01-L-D-DP Details

• Manufacturer Part Number:

  QSH-100-01-L-D-DP

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.40

• Manufacturer:

  Samtec Inc

• YTEOL:

  8.68

• Body Breadth:

  0.285 inch

• Body Depth:

  0.12 inch

• Body Length:

  3.988 inch

• Body/Shell Style:

  SOCKET

• Connector Type:

  BOARD STACKING CONNECTOR

• Contact Finish Mating:

  GOLD OVER NICKEL

• Contact Finish Termination:

  Tin (Sn) - with Nickel (Ni) barrier

• Contact Gender:

  FEMALE

• Contact Material:

  PHOSPHOR BRONZE

• Contact Pattern:

  RECTANGULAR

• Contact Style:

  BLADE PIN-SKT

• DIN Conformance:

  NO

• Durability:

  100 Cycles

• Filter Feature:

  NO

• IEC Conformance:

  NO

• Insulator Material:

  LIQUID CRYSTAL POLYMER

• JESD-609 Code:

  e3

• MIL Conformance:

  NO

• Mating Contact Pitch:

  0.02 inch

• Mating Contact Row Spacing:

  0.15 inch

• Mixed Contacts:

  NO

• Mounting Option 2:

  LOCKING

• Mounting Style:

  STRAIGHT

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  2

• Number of Rows Loaded:

  2

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  RECTANGULAR

• PCB Contact Row Spacing:

  5.334 mm

• Rated Current (Signal):

  2 A

• Reference Standard:

  UL, CSA

• Terminal Pitch:

  0.5 mm

• Termination Type:

  SURFACE MOUNT

• Total Number of Contacts:

  200
