QT735LPE15E-25.000MHZ - Q-Tech

Description: LVPECL Output Clock Oscillator 1.8V 1.000MHz to 250MHz 3.2 x 5mm surface mount 50mA -55°C to 125°C

Download QT735LPE15E-25.000MHZ Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this QT735LPE15E-25.000MHZ model

Email notifications will be applied after download.

Send part feedback

Symbol

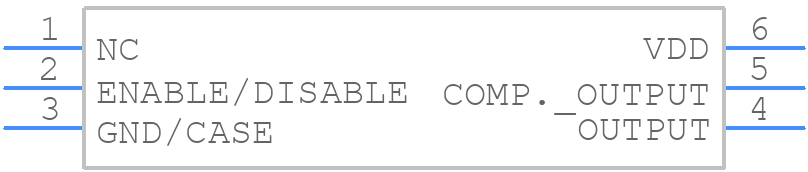

QT735LPE15E-25.000MHZ - Q-Tech - PCB symbol

PCB Footprints

QT735LPE15E-25.000MHZ - Q-Tech PCB footprint - Other - Other - QT735LPE15E-25.000MHZ-2

3D Models

QT735LPE15E-25.000MHZ - Q-Tech - 3D model - Other - QT735LPE15E-25.000MHZ-2

Datasheet Download Datasheet
Stock & Prices Price & Stock for QT735LPE15E-25.000MHZ
Part Number QT735LPE15E-25.000MHZ
Manufacturer Q-Tech
Pin Count 6
Part Category Crystal or Oscillator
Package Category Other
Footprint Name Other - QT735LPE15E-25.000MHZ-2
Released Date Jun 26, 2026
Last Modified Date Jun 26, 2026 5:05 AM UTC
Pinout / Pin List Click Here (Member Only)

QT735LPE15E-25.000MHZ Details

Manufacturer Part Number:
QT735LPE15E-25.000MHZ
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
USA
Manufacturer:
Q-TECH Corporation
YTEOL:
5
Oscillator Type:
LVPECL
Terminal Finish:
Gold (Au) - with Nickel (Ni) barrier
