QTE-020-08-F-D-A - SAMTEC

Description: 20 Position, Q Strip® High-Speed Ground Plane Header, 0.80mm Pitch

Download QTE-020-08-F-D-A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
QTE-020-08-F-D-A - SAMTEC - PCB symbol
click to zoom
PCB Footprints

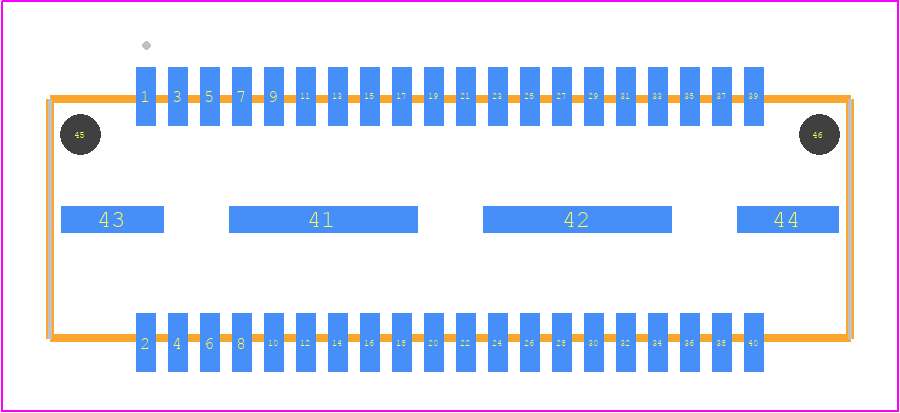

QTE-020-08-F-D-A - SAMTEC PCB footprint - Other - Other - QTE-020-XX-YYY-D-A
click to zoom
3D Models
QTE-020-08-F-D-A - SAMTEC - 3D model - Other - QTE-020-XX-YYY-D-A
click to zoom

QTE-020-08-F-D-A Details

  • Manufacturer Part Number:

    QTE-020-08-F-D-A

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    9

  • Connector Type:

    BOARD STACKING CONNECTOR

  • Contact Finish Mating:

    GOLD FLASH OVER NICKEL

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    PHOSPHOR BRONZE

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    0.8 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    40

QTE-020-08-F-D-A Frequently Asked Questions (FAQs)

  • The recommended mating sequence for QTE-020-08-F-D-A is to mate the contacts first, followed by the housing. This ensures proper alignment and prevents damage to the contacts.
  • Yes, the QTE-020-08-F-D-A is designed to withstand high-vibration environments. It has a ruggedized design and is suitable for use in applications with high shock and vibration.
  • The maximum operating temperature for QTE-020-08-F-D-A is 125°C. However, it's recommended to derate the current carrying capacity at higher temperatures to ensure reliable operation.
  • No, the QTE-020-08-F-D-A is designed for a specific mating height of 8mm. Using it with a different mating height may compromise the connector's performance and reliability.
  • Yes, the QTE-020-08-F-D-A is designed for automated assembly processes. It has a pick-and-place compatible design and can be easily integrated into automated assembly lines.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

QTE-020-08-F-D-A Overview

Use the download button to access the QTE-020-08-F-D-A schematic symbol, PCB footprint, and 3D model.
