QTH-020-04-L-D-DP-A - SAMTEC

Description: Board to Board & Mezzanine Connectors 0.50 mm Q Strip High-Speed Ground Plane Terminal Strip

Download QTH-020-04-L-D-DP-A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

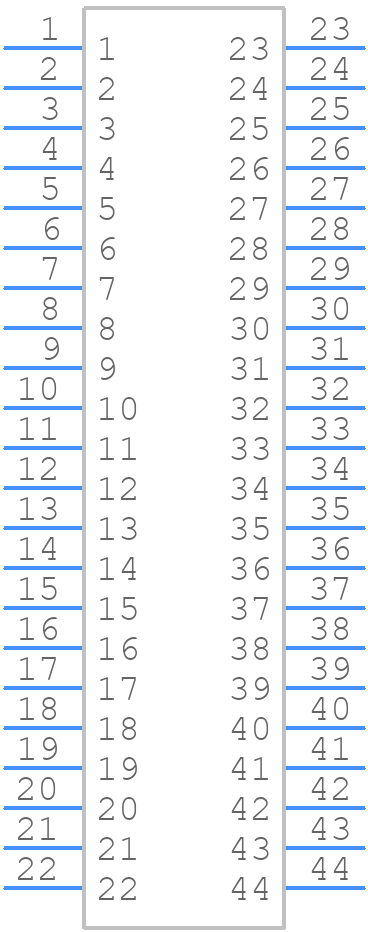

Symbol
QTH-020-04-L-D-DP-A - SAMTEC - PCB symbol
click to zoom

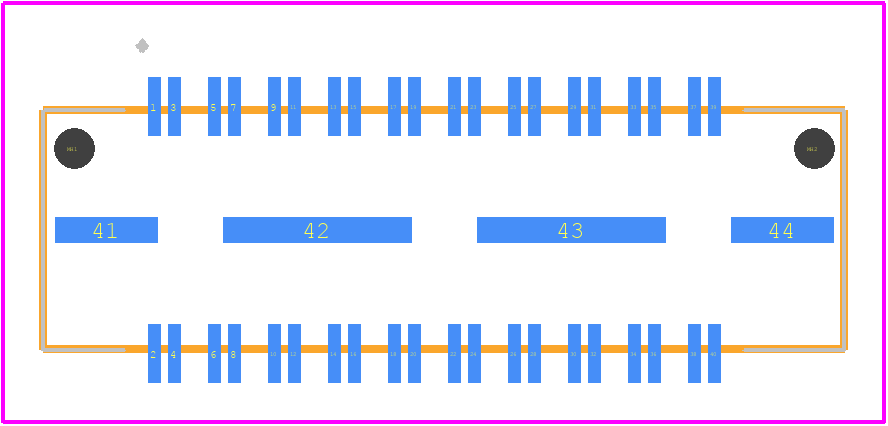

PCB Footprints
QTH-020-04-L-D-DP-A - SAMTEC PCB footprint - Other - Other - QTH-020-01-L-D-DP-A-K-1
click to zoom
3D Models
QTH-020-04-L-D-DP-A - SAMTEC - 3D model - Other - QTH-020-01-L-D-DP-A-K-1
click to zoom

QTH-020-04-L-D-DP-A Details

  • Manufacturer Part Number:

    QTH-020-04-L-D-DP-A

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Costa Rica

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    2 Weeks, 4 Days

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    9

  • Connector Type:

    BOARD STACKING CONNECTOR

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    0.5 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    40

  • UL Flammability Code:

    94V-0

QTH-020-04-L-D-DP-A Frequently Asked Questions (FAQs)

  • The recommended torque for the screws on the QTH-020-04-L-D-DP-A connector is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
  • Yes, the QTH-020-04-L-D-DP-A connector is designed to withstand high-vibration environments. Samtec recommends following their guidelines for vibration testing and ensuring proper mounting and screw torque to ensure reliable operation.
  • The maximum operating temperature for the QTH-020-04-L-D-DP-A connector is 125°C (257°F) according to Samtec's datasheet.
  • The QTH-020-04-L-D-DP-A connector is not designed for use in humid or wet environments. Samtec recommends using a connector with a higher ingress protection rating (IP rating) for such applications.
  • The mating cycle life of the QTH-020-04-L-D-DP-A connector is 500 cycles minimum according to Samtec's datasheet.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

QTH-020-04-L-D-DP-A Overview

Use the download button to access the QTH-020-04-L-D-DP-A schematic symbol, PCB footprint, and 3D model.
