QTH-030-01-F-D-RA-K - SAMTEC

Description: 60 Position Connector Header, Outer Shroud Contacts Surface Mount, Right Angle Gold

Download QTH-030-01-F-D-RA-K Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
QTH-030-01-F-D-RA-K - SAMTEC - PCB symbol
click to zoom
PCB Footprints

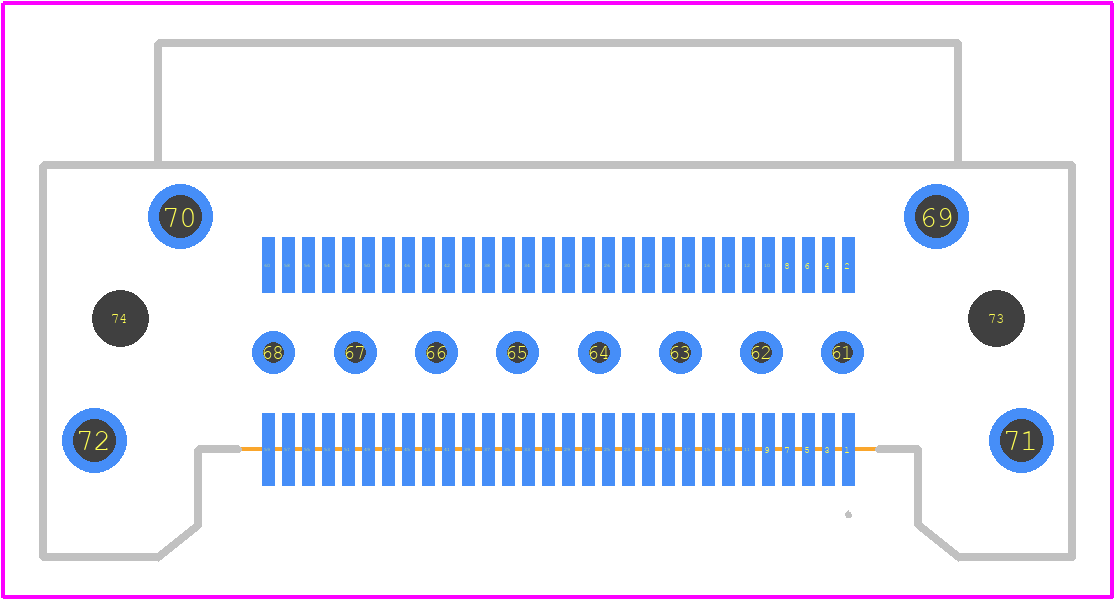

QTH-030-01-F-D-RA-K - SAMTEC PCB footprint - Other - Other - QTH-030-01-F-D-RA-K-2
click to zoom
3D Models
QTH-030-01-F-D-RA-K - SAMTEC - 3D model - Other - QTH-030-01-F-D-RA-K-2
click to zoom

QTH-030-01-F-D-RA-K Details

  • Manufacturer Part Number:

    QTH-030-01-F-D-RA-K

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Costa Rica, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Samtec Inc

  • Body Breadth:

    0.348 inch

  • Connector Type:

    BOARD STACKING CONNECTOR

  • Contact Finish Mating:

    AU ON NI

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Pattern:

    RECTANGULAR

  • Filter Feature:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e3

  • Mating Contact Pitch:

    0.02 inch

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • PCB Contact Pattern:

    RECTANGULAR

  • Plating Thickness:

    FLASH inch

  • Rated Current (Signal):

    2.2 A

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    60

QTH-030-01-F-D-RA-K Frequently Asked Questions (FAQs)

  • The recommended torque for the screws on the QTH-030-01-F-D-RA-K connector is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
  • Yes, the QTH-030-01-F-D-RA-K connector is designed to support high-speed signals up to 10 Gbps and is suitable for applications such as HDMI, SATA, and PCIe.
  • The operating temperature range of the QTH-030-01-F-D-RA-K connector is -55°C to 125°C, making it suitable for a wide range of industrial and commercial applications.
  • Yes, the QTH-030-01-F-D-RA-K connector is RoHS and REACH compliant, making it suitable for use in European Union countries and other regions with similar regulations.
  • The mating cycle life of the QTH-030-01-F-D-RA-K connector is 500 cycles minimum, making it suitable for applications where frequent mating and unmating is required.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

QTH-030-01-F-D-RA-K Overview

Use the download button to access the QTH-030-01-F-D-RA-K schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like QTH-0, or try a keyword search, such as Headers and Edge Type Connectors
