QTH-030-01-L-D-RA-K footprint, schematic symbol and 3D model by SAMTEC

Symbol

click to zoom

PCB Footprints

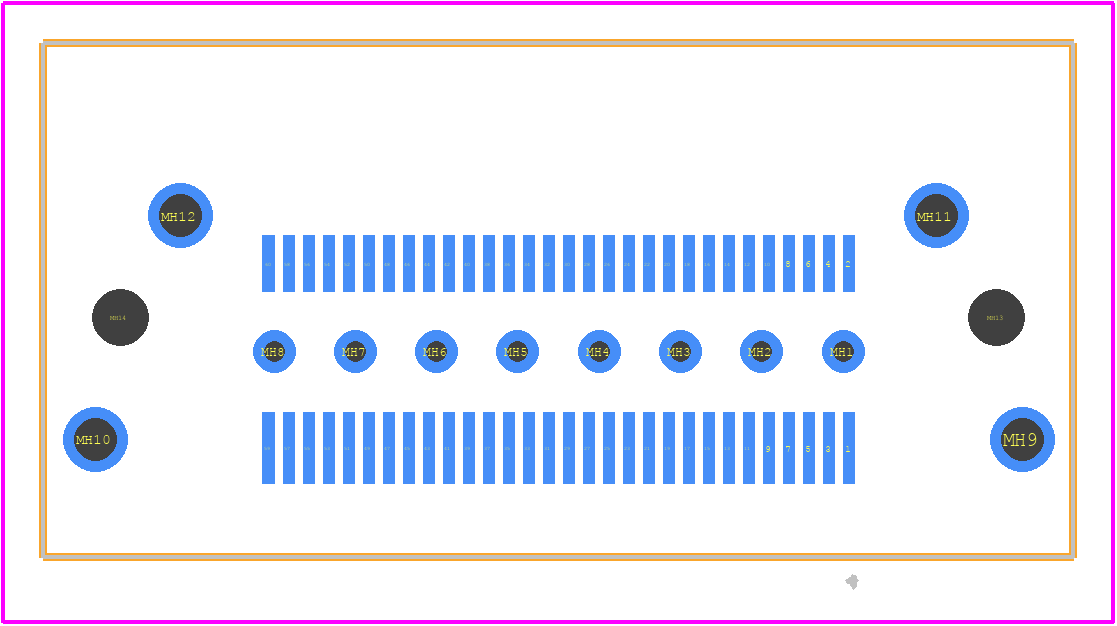

QTH-030-01-L-D-RA-K - SAMTEC PCB footprint - Other - Other - QTH-030-01-L-D-RA-K-4

click to zoom

3D Models

QTH-030-01-L-D-RA-K - SAMTEC - 3D model - Other - QTH-030-01-L-D-RA-K-4

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for QTH-030-01-L-D-RA-K
Part Number QTH-030-01-L-D-RA-K
Manufacturer SAMTEC
Pin Count 72
Part Category Connector
Package Category Other
Footprint Name Other - QTH-030-01-L-D-RA-K-4
Released Date Jul 2, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

QTH-030-01-L-D-RA-K Details

Manufacturer Part Number:
QTH-030-01-L-D-RA-K
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Costa Rica, USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
2 Weeks, 6 Days
Manufacturer:
Samtec Inc
Body Breadth:
0.348 inch
Connector Type:
BOARD STACKING CONNECTOR
Contact Finish Mating:
AU ON NI
Contact Finish Termination:
Tin (Sn) - with Nickel (Ni) barrier
Contact Gender:
MALE
Contact Pattern:
RECTANGULAR
Filter Feature:
NO
Insulator Color:
BLACK
Insulator Material:
LIQUID CRYSTAL POLYMER
JESD-609 Code:
e3
Mating Contact Pitch:
0.02 inch
Mixed Contacts:
NO
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number Of PCB Rows:
2
Number of Rows Loaded:
2
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
PCB Contact Pattern:
RECTANGULAR
Plating Thickness:
10u inch
Rated Current (Signal):
2.2 A
Termination Type:
SOLDER
Total Number of Contacts:
60

QTH-030-01-L-D-RA-K Frequently Asked Questions (FAQs)

The recommended torque for the screws on the QTH-030-01-L-D-RA-K connector is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
Yes, the QTH-030-01-L-D-RA-K connector is designed to withstand high-vibration environments. Samtec's testing shows that it can withstand vibrations up to 20 G's.
The maximum operating temperature for the QTH-030-01-L-D-RA-K connector is 125°C (257°F) according to Samtec's datasheet.
Yes, the QTH-030-01-L-D-RA-K connector is RoHS and REACH compliant, meeting the requirements for lead-free and hazardous substance-free materials.
The mating cycle life of the QTH-030-01-L-D-RA-K connector is 500 cycles minimum, according to Samtec's testing and application notes.

Trust Checks

Expert Contribution

System Verified

Community Approved

QTH-030-01-L-D-RA-K Overview

Use the download button to access the QTH-030-01-L-D-RA-K schematic symbol, PCB footprint, and 3D model.
