QXP2J224KRPT - Nichicon

Description: Film Capacitors .22UF 630V 10%

Download QXP2J224KRPT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
QXP2J224KRPT - Nichicon - PCB symbol
click to zoom
PCB Footprints

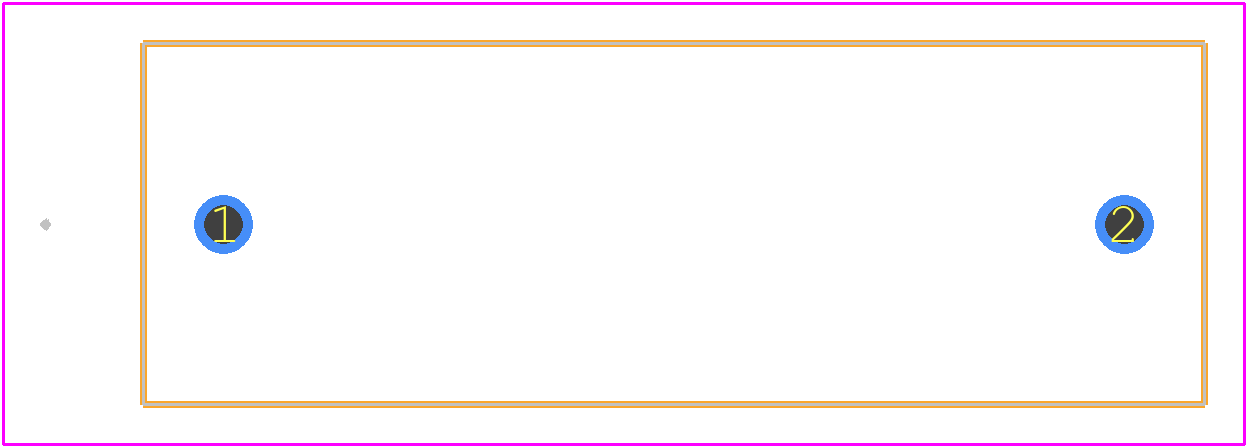

QXP2J224KRPT - Nichicon PCB footprint - Other - Other - QXP2J224KRPT-1
click to zoom
3D Models
QXP2J224KRPT - Nichicon - 3D model - Other - QXP2J224KRPT-1
click to zoom

QXP2J224KRPT Details

  • Manufacturer Part Number:

    QXP2J224KRPT

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00

  • Manufacturer:

    Nichicon Corporation

  • YTEOL:

    7.46

  • Capacitance:

    0.22 µF

  • Capacitor Type:

    FILM CAPACITOR

  • Dielectric Material:

    POLYPROPYLENE

  • Height:

    18.3 mm

  • JESD-609 Code:

    e3

  • Length:

    26.5 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    10%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    Radial

  • Packing Method:

    BULK

  • Positive Tolerance:

    10%

  • Rated (AC) Voltage (URac):

    200 V

  • Rated (DC) Voltage (URdc):

    630 V

  • Surface Mount:

    NO

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Pitch:

    22.5 mm

  • Terminal Shape:

    WIRE

  • Width:

    9 mm

QXP2J224KRPT Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for QXP2J224KRPT is 260°C (500°F) for 10 seconds or less, to prevent damage to the capacitor.
  • Yes, QXP2J224KRPT is designed to withstand high vibrations and is suitable for use in applications with high mechanical stress, such as automotive and industrial systems.
  • QXP2J224KRPT is rated for operation up to 125°C (257°F) and is suitable for use in high-temperature environments, such as in automotive and industrial applications.
  • Yes, QXP2J224KRPT is compatible with lead-free soldering processes and meets the requirements of the RoHS directive.
  • The ESR of QXP2J224KRPT is typically around 10 mohm at 100 kHz, but this value can vary depending on the frequency and operating conditions.
