RECOM recommends a PCB layout with a large copper area connected to the module's thermal pad to ensure good heat dissipation. A minimum of 2 oz copper thickness is recommended, and the copper area should be connected to a heat sink or a metal plate for further heat dissipation.
Yes, the R-523.3PA is designed to withstand high-vibration environments. However, it's essential to ensure that the module is properly secured to the PCB and that the PCB is designed to withstand the vibrations. RECOM recommends following the IPC-9592 standard for vibration testing.
To ensure reliability in high-temperature environments, RECOM recommends derating the module's output power according to the temperature derating curve provided in the datasheet. Additionally, ensure good airflow around the module, and consider using a heat sink or a thermal interface material to improve heat dissipation.
RECOM recommends using a low-ESR ceramic capacitor with a value of 10-22 μF, rated for the input voltage range. The capacitor should be placed as close as possible to the module's input pins to minimize noise and ensure stable operation.
Yes, the R-523.3PA can be used in a redundant or parallel configuration to achieve higher power output or to improve system reliability. However, it's essential to ensure that the modules are properly synchronized and that the system is designed to handle the increased power output.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
R-523.3PA Overview

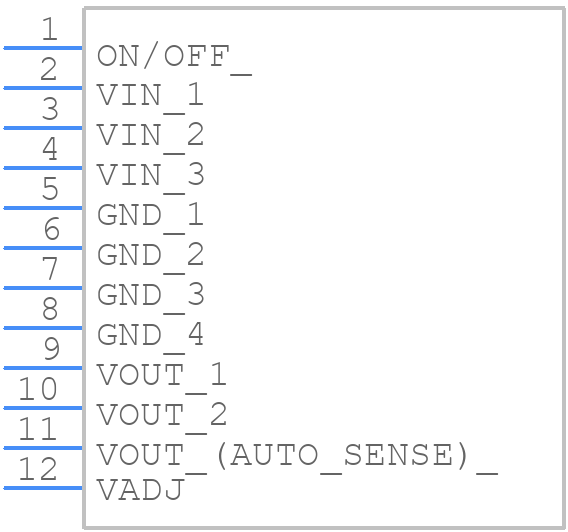

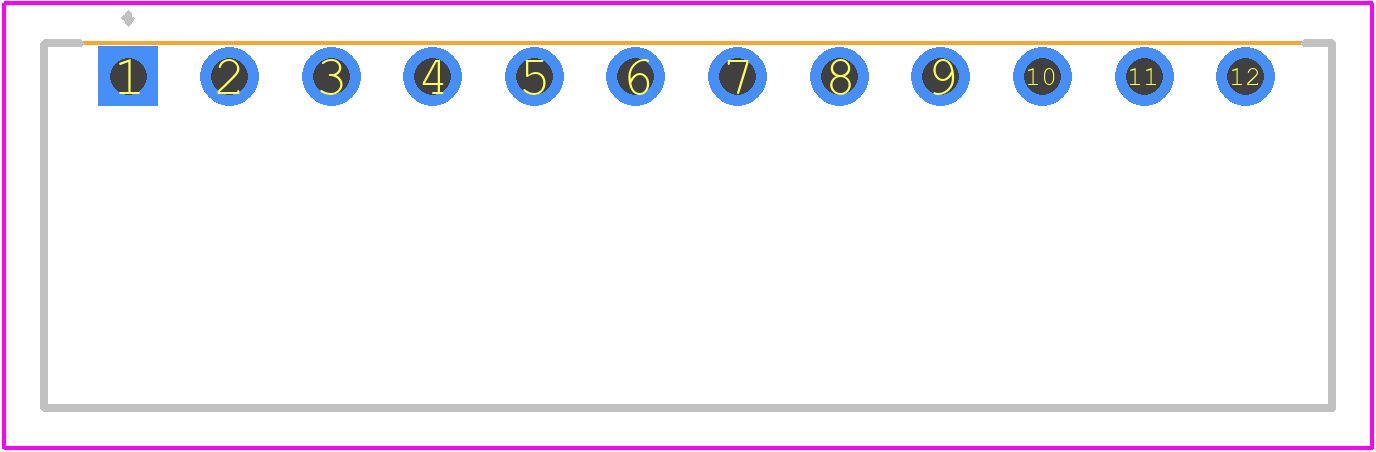

Use the download button to access the R-523.3PA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like R-523,
or try a keyword search, such as Power Supply Modules
