R-533.3PA - RECOM Power

Description: Non-Isolated DC-DC Converter, 3.3V dc Output 4.5 → 18V dc, 3A 3.3 V dc 4.5 → 18 V dc

Download R-533.3PA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

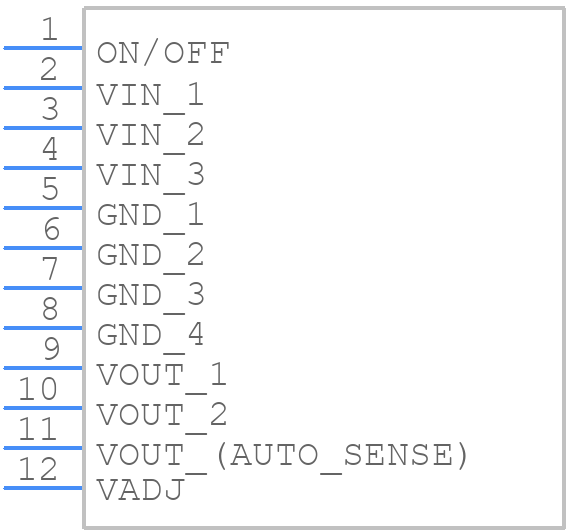

R-533.3PA - RECOM Power - PCB symbol
click to zoom
PCB Footprints

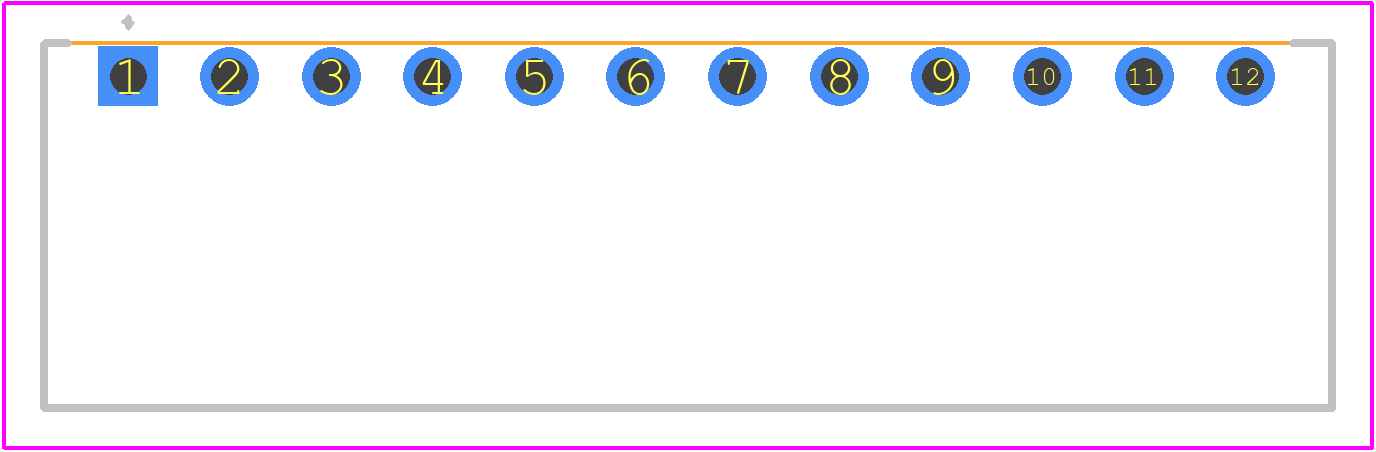

R-533.3PA - RECOM Power PCB footprint - Other - Other - R-533.3PA-1
click to zoom
3D Models
R-533.3PA - RECOM Power - 3D model - Other - R-533.3PA-1
click to zoom

R-533.3PA Details

  • Manufacturer Part Number:

    R-533.3PA

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ,

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China, Taiwan

  • ECCN Code:

    EAR99

  • Manufacturer:

    RECOM Power GmbH

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    18 V

  • Input Voltage-Min:

    4.5 V

  • JESD-609 Code:

    e3

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Output Voltage-Nom:

    3.3 V

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Terminal Finish:

    Tin (Sn)

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    9.9 W

R-533.3PA Frequently Asked Questions (FAQs)

  • RECOM recommends a 2-layer PCB with a solid ground plane on the bottom layer and a thermal relief pattern on the top layer to ensure optimal thermal performance.
  • To ensure reliable start-up in cold temperatures, RECOM recommends adding a soft-start circuit or a voltage ramp-up circuit to the input voltage to prevent inrush currents.
  • The maximum allowed capacitance on the output is 220uF. Exceeding this value may cause instability or oscillations in the converter.
  • Yes, the R-533.3PA is suitable for high-altitude applications up to 20,000 feet. However, the derating curves should be consulted to ensure the converter operates within its specifications.
  • RECOM recommends checking the input voltage, output voltage, and output current to identify the fault. Additionally, checking the thermal shutdown and overcurrent protection circuits can help diagnose the issue.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

R-533.3PA Overview

Use the download button to access the R-533.3PA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like R-533, or try a keyword search, such as Power Supply Modules
