Part Image

R-535.0DA - RECOM Power

Description: Non-Isolated DC/DC Converters DC/DC REG 6.5-18Vin 3.0-5.5out

Download R-535.0DA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

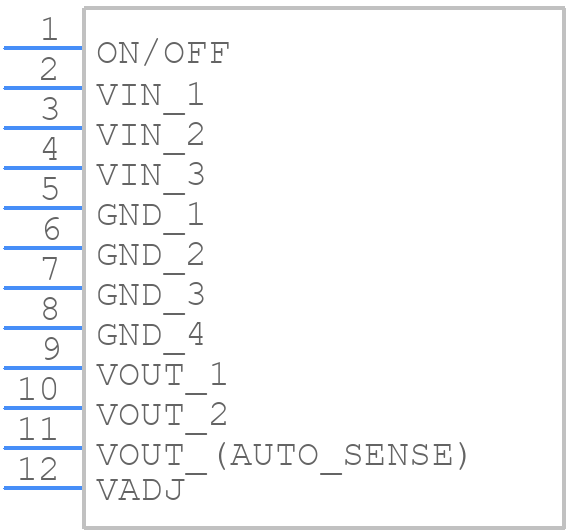

Symbol
R-535.0DA - RECOM Power - PCB symbol
click to zoom

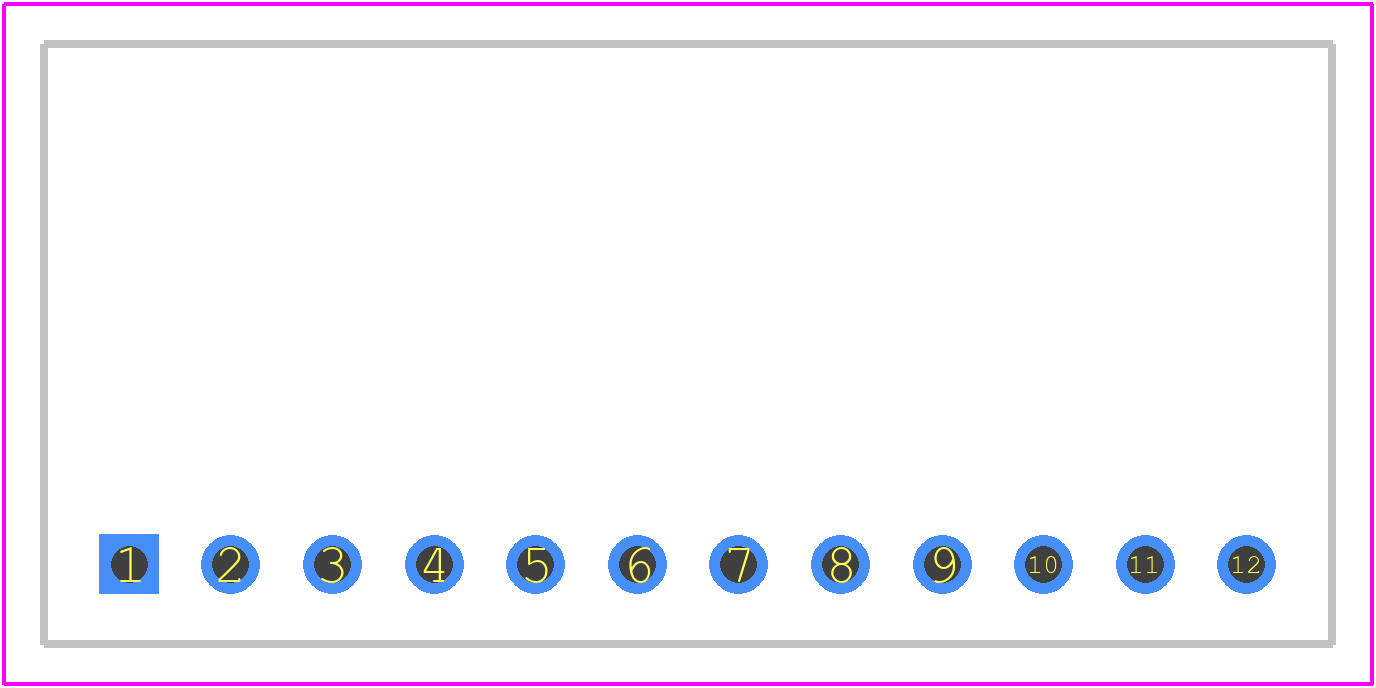

PCB Footprints
R-535.0DA - RECOM Power PCB footprint - Other - Other - R-535.0DA-4
click to zoom
3D Models
R-535.0DA - RECOM Power - 3D model - Other - R-535.0DA-4
click to zoom

R-535.0DA Details

  • Manufacturer Part Number:

    R-535.0DA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ,

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China, Taiwan

  • ECCN Code:

    EAR99

  • Manufacturer:

    RECOM Power GmbH

  • YTEOL:

    6

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    18 V

  • Input Voltage-Min:

    6.5 V

  • JESD-609 Code:

    e3

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Output Voltage-Nom:

    5 V

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Terminal Finish:

    Tin (Sn)

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    15 W

R-535.0DA Frequently Asked Questions (FAQs)

  • The maximum ambient temperature for the R-535.0DA is 80°C, with a derating of 2.5% per °C above 60°C.
  • Yes, the R-535.0DA is suitable for use in humid environments, with a maximum relative humidity of 95% non-condensing.
  • The recommended input capacitance for the R-535.0DA is 2x 22μF/100V electrolytic capacitors or 2x 10μF/100V ceramic capacitors.
  • Yes, the R-535.0DA is designed to withstand vibrations up to 10G peak acceleration, 10-2000Hz, in accordance with IEC 60068-2-6.
  • The typical efficiency of the R-535.0DA is around 85-90% at full load, depending on the input voltage and output load.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

R-535.0DA Overview

Use the download button to access the R-535.0DA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like R-535, or try a keyword search, such as Power Supply Modules
