R-535.0PA - RECOM Power

Description: RECOM POWER - R-535.0PA - Non Isolated POL DC/DC Converter, ITE, 16.5 W, 3 V, 5.5 V, 3 A, Adjustable

Download R-535.0PA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

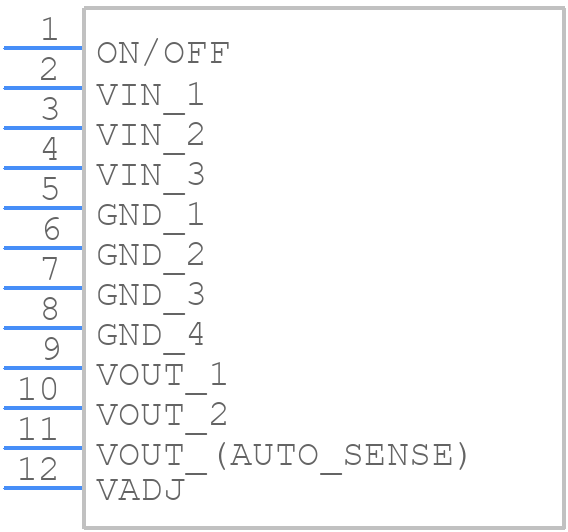

R-535.0PA - RECOM Power - PCB symbol
click to zoom
PCB Footprints

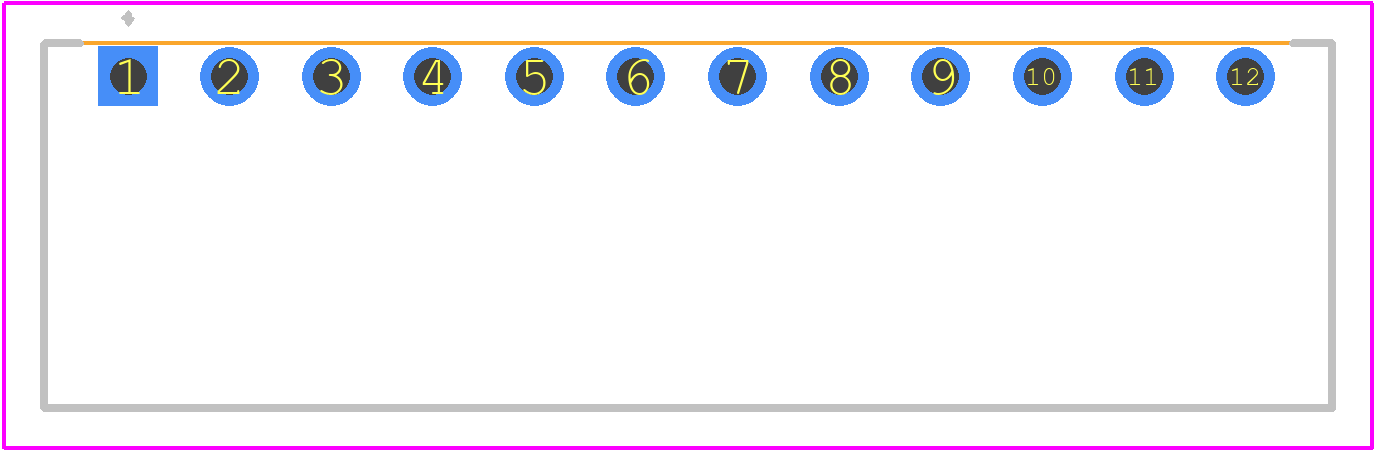

R-535.0PA - RECOM Power PCB footprint - Other - Other - R-535.0PA-1
click to zoom
3D Models
R-535.0PA - RECOM Power - 3D model - Other - R-535.0PA-1
click to zoom

R-535.0PA Details

  • Manufacturer Part Number:

    R-535.0PA

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ,

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China, Taiwan

  • ECCN Code:

    EAR99

  • Manufacturer:

    RECOM Power GmbH

  • YTEOL:

    6

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    18 V

  • Input Voltage-Min:

    6.5 V

  • JESD-609 Code:

    e3

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Output Voltage-Nom:

    5 V

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Terminal Finish:

    Tin (Sn)

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    15 W

R-535.0PA Frequently Asked Questions (FAQs)

  • RECOM recommends a 2-layer PCB with a solid ground plane on the bottom layer and a thermal relief pattern on the top layer to ensure good heat dissipation.
  • To ensure reliable start-up, RECOM recommends a soft-start circuit or a ramp-up of the input voltage to prevent inrush currents and ensure a smooth start-up.
  • The maximum allowed capacitance on the output is 220uF. Exceeding this value may cause instability or oscillations in the converter.
  • While the R-535.0PA is rated for operation up to 85°C, RECOM recommends derating the output power by 2.5% per degree above 60°C to ensure reliable operation in high-temperature environments.
  • RECOM recommends using a TVS diode or a surge protector at the input to protect the converter from voltage surges and spikes.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

R-535.0PA Overview

Use the download button to access the R-535.0PA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like R-535, or try a keyword search, such as Power Supply Modules
