Part Image

R-543.3PA - RECOM Power

Description: Non-Isolated DC-DC Converter, 3.3V dc Output 4.5 → 18V dc, 4A 3.3 V dc 4.5 → 18 V dc

Download R-543.3PA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

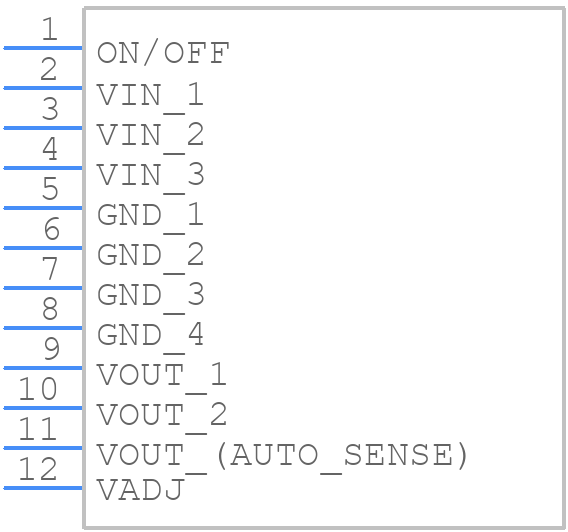

R-543.3PA - RECOM Power - PCB symbol
click to zoom
PCB Footprints

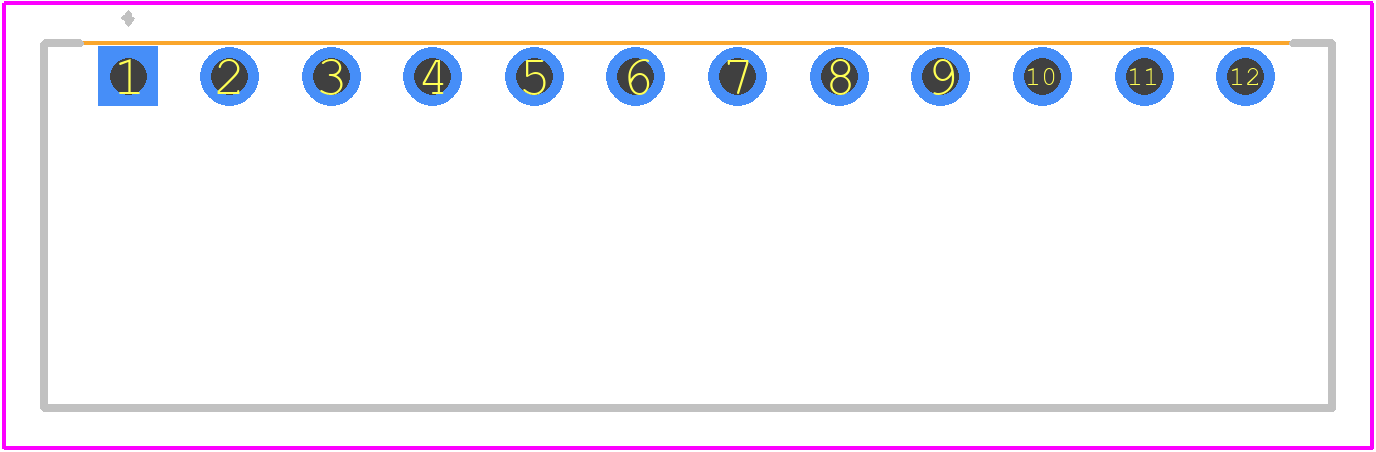

R-543.3PA - RECOM Power PCB footprint - Other - Other - R-543.3PA-1
click to zoom
3D Models
R-543.3PA - RECOM Power - 3D model - Other - R-543.3PA-1
click to zoom

R-543.3PA Details

  • Manufacturer Part Number:

    R-543.3PA

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ,

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China, Taiwan

  • ECCN Code:

    EAR99

  • Manufacturer:

    RECOM Power GmbH

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    18 V

  • Input Voltage-Min:

    4.5 V

  • JESD-609 Code:

    e3

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Output Voltage-Nom:

    3.3 V

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Terminal Finish:

    Tin (Sn)

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    13.2 W

R-543.3PA Frequently Asked Questions (FAQs)

  • RECOM recommends a PCB layout with a large copper area connected to the module's thermal pad to ensure good heat dissipation. A minimum of 2 oz copper thickness is recommended.
  • Yes, the R-543.3PA is designed to withstand high vibrations. However, it's essential to follow the recommended PCB mounting and screw torque guidelines to ensure the module remains securely attached.
  • RECOM recommends adding external input filtering components, such as a common-mode choke and X-capacitors, to meet specific EMC requirements. Consult the datasheet and RECOM's application notes for guidance.
  • The maximum allowed capacitance on the output is 2200 μF. Exceeding this value may affect the module's stability and performance.
  • Yes, you can parallel multiple R-543.3PA modules to increase the output power. However, it's crucial to ensure proper synchronization and current sharing between the modules. Consult RECOM's application notes for guidance.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

R-543.3PA Overview

Use the download button to access the R-543.3PA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like R-543, or try a keyword search, such as Power Supply Modules
